Customized Screw Fastening Machine with Visible Operation for Desktop Operation

Brand Name:	HSTECH
Model Number:	HS-SL5331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

4Axis Automatic Screw Locking Machine

Feeding:

Suction Feeding

Axis:

4axis

Screws Compatible:

M1-M6, Or Customized

Moving Range:

500*300*300*100mm

Port:

Shenzhen

Oem:

Yes

Warranty:

1 Year

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Highlight:

Desktop Operation Screw Fastening Machine

Visible Operation Screw Fastening Machine

Customized Screw Fastening Machine

Product Description

Desktop Screw Fastening Machine with Visible Operation for Desktop Operation

Introduction

The screw machine is an automated equipment with a four axis moving system, dual stations, and a single feeder. The entire machine consists of a feed system and a locking system, responsible for the feed part of the wire feeder. It is a relatively simple wire feeder screw to improve work efficiency. This type of thread locking machine is an automated equipment widely used in the electronics industry. Compatible with screws from M1 to M6, other special screws can also be customized.

Features

1. Suction feeder, single screw feeder, can also be customized as double screw feeder.
2. Use a high-quality electric screwdriver for Z-axis movement.
3. 4-axis operation, with a movement range of 500 * 300 * 300 * 100mm.
4. Dual workstations allow operators to load products one after another, greatly improving production efficiency and reducing labor costs.
5. Accurate torque, convenient adjustment, ensuring production quality.
6. M1-M6 is easy to adapt to, just replace the screwdriver (customizable).
7. Equipped with leak detection function, if the screw is not filled properly, it can be continuously filled or an alarm can be triggered.
8. This machine can store hundreds of processing files, each of which can support 1000 screwdriver heads and can be retrieved during use.

Specification

Model	HS-SL5331
Production name	4Axis Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	500300300*100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension	746585800mm
Machine weight	65kg

Main parts brand

1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell

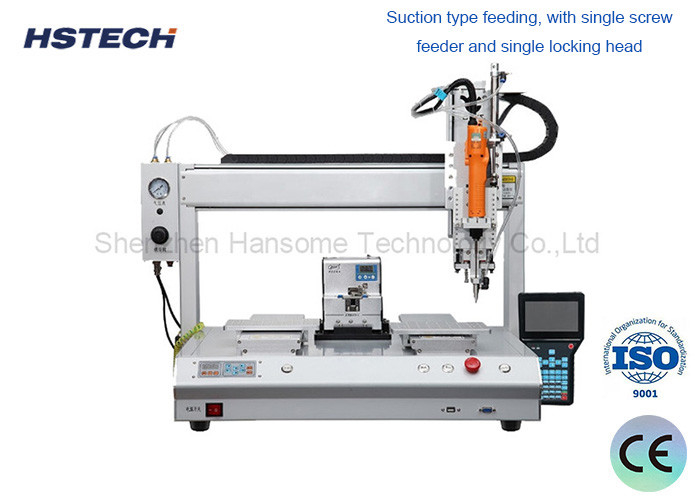

Customized Screw Fastening Machine with Visible Operation for Desktop Operation 0

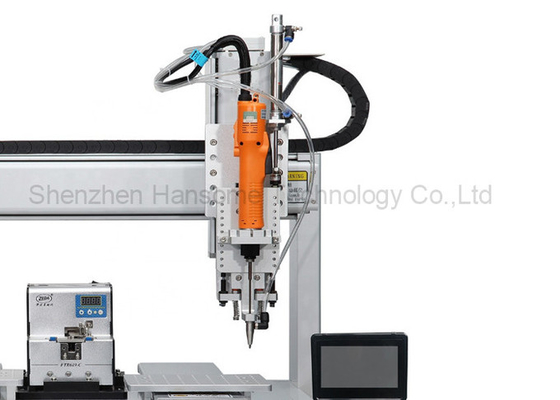

Customized Screw Fastening Machine with Visible Operation for Desktop Operation 1
