| Brand Name: | HSTECH |
| Model Number: | HS-F550 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |

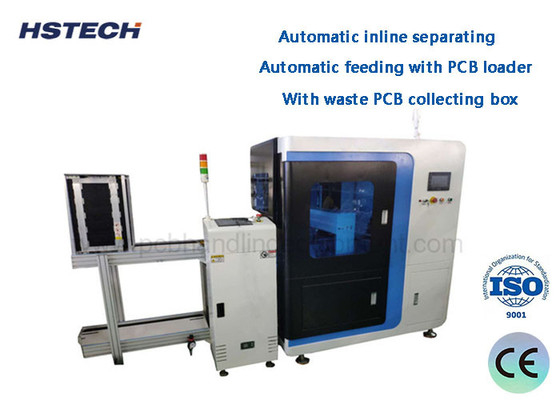

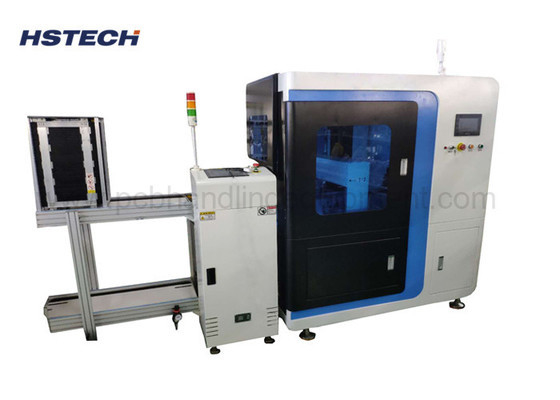

Automatic Feeding Inline Vcut PCB Depaneling Equipment with Linear and Circular Blade
Description
The circuit board separator is a fully automatic online V-cut circuit board separator. It uses a circuit board loader to achieve automatic loading of the circuit board, and the circuit board is transported by a belt to the X-axis and Y-axis for automatic separation. It adopts a combination of linear and circular blades. The operator only needs to put the circuit board into the bin and wait for the separated circuit board unit at the end of the machine.
Features
1. Automatic online separation.
2. Automatic feeding with PCB loader, automatic separation of VCUT in X-axis and Y-axis directions.
3. Comes with a waste PCB collection box.
4. After the conveyor belt is separated, it is used for collection.
5. PLC controlled precision PCB lower board, can be connected to PCB loading machine, fully automatic from loading to receiving.
6. It saves labor on manually loading PCBs, resulting in higher efficiency and accuracy.
7. It can save 100 components of board data, and when different types of boards are needed, it is very convenient to import the saved data.
8. The dynamic top splitting method has ultra-low cutting force and stress, suitable for double-sided printed circuit boards of electronic components.
9. This machine is equipped with an infrared light curtain sensor for high safety.
10. Taiwan brand TBI guide screw, smooth and easy to adjust.
11. High speed Japanese brand helmets that can be repeatedly polished.
12. This machine can add SMEMA boards and can be connected to a PCB loader for automatic loading.
Specification
| Model | HS-F550 |
| Efficiency cutting length | 0-500mm |
| Separating width | ≤ 300mm |
| Circular blade size | Φ125*30*3mm |
| Linear blade size | 420*45*6mm |
| Blade thickness | 0.3-0.6mm |
| Separating speed | Adjustable |
| Separating thickness | ≤2mm |
| Blade material | Overseas high quality steel blade |
| Production ability | 100,000pcs per day |
| Voltage | AC110V/220V |
| Air pressure | 0.5-0.8Mpa |
| Power | 1.1KW |
| Machine dimension | 1500*550*1550mm |
| Weight | 325KG |
