| Brand Name: | HSTECH |
| Model Number: | HS-SL5331 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |

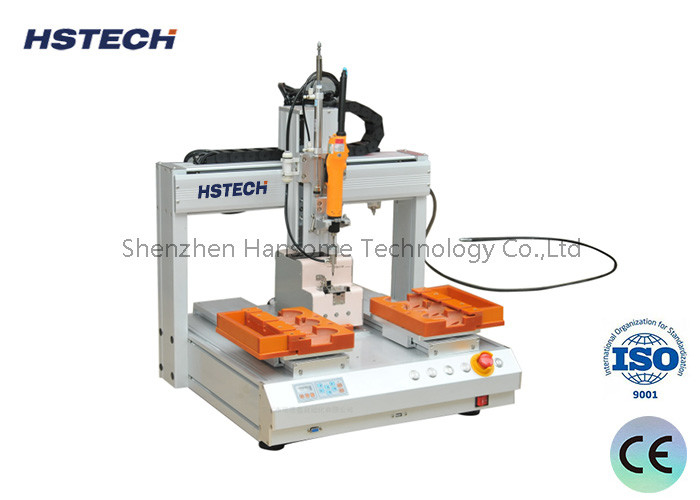

As a highly efficient automation equipment, the screw fastening machine integrates an advanced 4-axis moving system and is specially designed with a dual-station operation mode, together with a single feeder, to achieve a smooth production process. The core of the machine consists of two modules, the precision feeding system and the efficient locking system. The feeding section adopts a simple yet efficient screw arrangement mechanism, which is designed to maximise operational efficiency and reduce manual intervention.
This screw fastening automation machine is widely used in the electronics manufacturing industry, showing its strong adaptability and flexibility. It can easily handle screws from M1 to M6 standard sizes, and at the same time, it can also provide customised solutions for special screw types to ensure that it meets diversified production requirements.
To sum up, this screw fastening machine not only improves production efficiency, but also plays an important role in the automated production of the electronics industry with its wide applicability and customisation capability.
1,Adopting suction feeding technology, single screw feeder is equipped as standard, meanwhile, it supports upgrading to double feeder to meet the demand of higher efficiency.

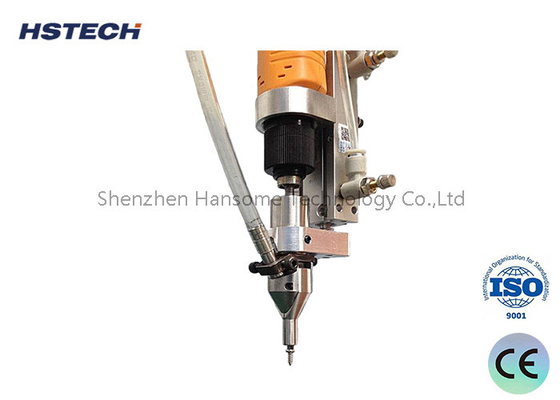

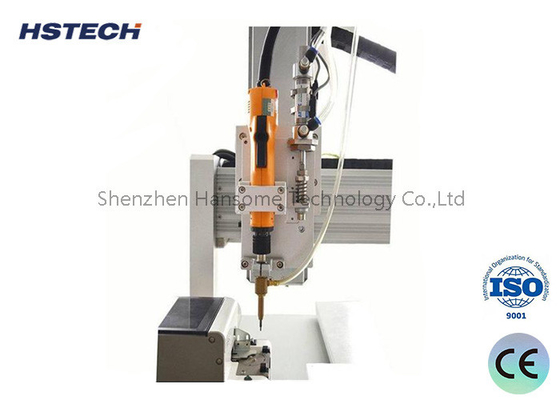

2,Z-axis moving system is equipped with high quality electric screwdriver to ensure accurate and efficient locking operation.
3,Equipped with 4-axis operating platform, providing a wide range of 500300300*100mm to flexibly cope with various locking tasks.
4,Dual station design allows operators to load products alternately, significantly improving productivity and effectively reducing labour costs.
5,Torque control is precise and easy to adjust to ensure that every locking meets the quality standard and guarantee the production quality.
6, widely compatible with M1 to M6 specifications screws, through a simple replacement of the screw guide can be achieved (support for special specifications customised).
7,Integrated leakage detection function, intelligent identification of screw filling state, automatic replenishment or alarm when not in place, to ensure production continuity.
8,Built-in mass storage system, can save hundreds of processing files, each file supports recording 1000 screw position information, easy to call at any time, improve production flexibility.
| Model | HS-SL5331 | |
| Production name | 4Axis Automatic Screw Locking Machine | |
| Moving range(X/Y1/Y2/Z) | 500*300*300*100mm | |
| X/Y1/Y2 axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y1/Y2 axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M6 | |
| Machine dimension | 746*585*800mm | |
| Machine weight | 65kg | |
Main parts brand
1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell
