| Brand Name: | HSTECH |
| Model Number: | HS-500LC |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 200 sets per month |
PCB Lead Cutting Machine 8/10inch Blade Max 250mm Width for SMT Machine Parts Adjustable Speed
Introduction
This machine is used to cut the excess pins/leads of PCBA after wave soldering and consists of two parts: PCB fixing and blade fixing.The PCB is conveyed by a chain and is fixed by the grippers on both sides and by the thimbles located at the bottom of the PCB. Once the blade is fixed and the height is set, the PCB is transported to the automatic lead cutting machine. The blades rotate quickly and steadily with very low noise and high efficiency. It is equipped with an anti-warping device to ensure that no damage is caused to the PCBA board.
Feature
1.Using the eagle claw type shrapnel fixture, the clamping PCB board is automatically pushed, high stability. The speed of board feeding is adjustable, the spindle speed is fast, low noise, high precision and fast efficiency.
2.The model is equipped with a pair of conveyor chain, which can clamp the PCBA and transport it to the blade turning place for trimming at high speed.

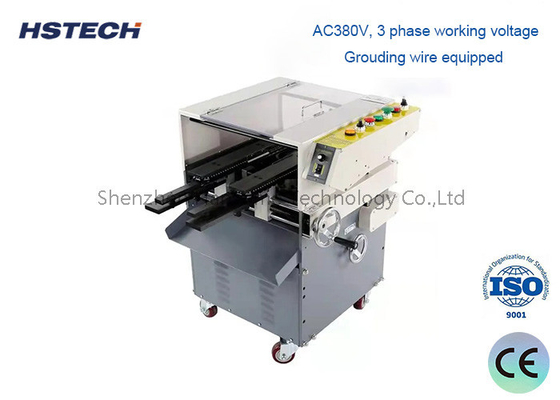

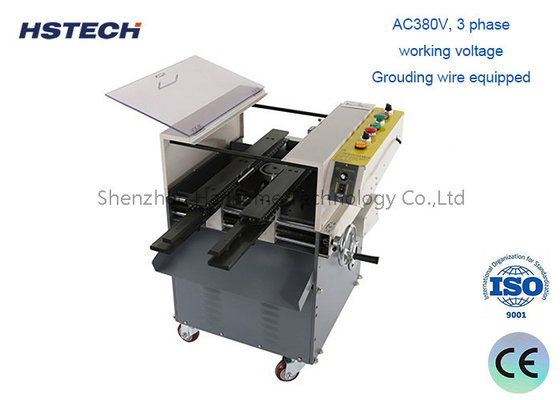

3.AC380V, three-phase working voltage. Equipped with shielded wire.
4.This machine can be connected with automatic soldering machine or AI machine.
5.High stability, can be connected with automatic soldering machine or AI machine.
6.With bending prevention device to overcome the bending PCB in soldering.
7.Input speed is adjustable, the maximum speed is 3m/min.
Specification
| Model | HS-500LC |
| Power | AC220, 50/60Hz/380V,50/60Hz |
| Max. PCB size | 400mm(L) x 250mm(W) |
| Main axis speed | 4500/Min |
| Main axis motor | 3/4 Hp |
| Guide rail speed | 0-3 M can be adjustable |
| Min. lead height | 1.0-1.5mm Min |
| Machine Demension | 750*600*860mm(W*D*H) |
| Net Weight | 115KG |
