| Brand Name: | HSTECH |
| Model Number: | HS-600 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |

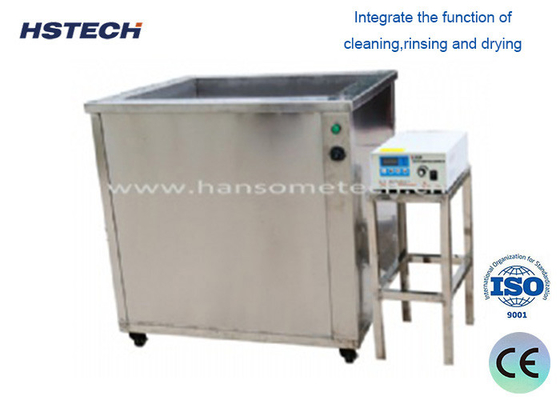

Stainless Steel Pneumatic SMT Cleaning Equipment for Stencils and Screens
Introduction
This machine used to cleaning stencil, steel mesh, copper screen, gule screen, etc SMT process screens.
Features
1. Fully pneumatic power supply, connected to the air compressor, without the need to connect to 200V or 110V voltage.
2. The entire process includes cleaning and drying.
3. This machine has a timer that can be set to display the cleaning and drying time, as well as a pressure gauge that can display the cleaning and drying pressure.

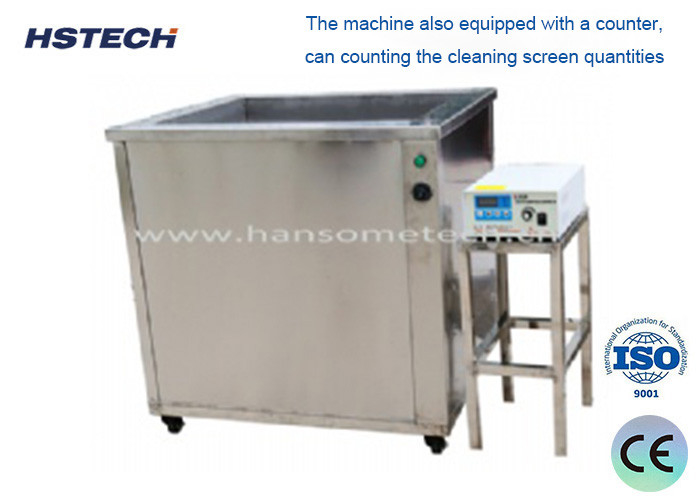

4. This machine is also equipped with a counter that can count the number of cleaning screens.
5. Easy to operate, after setting up cleaning and drying, press the start button to start the process.
6. Equipped with an emergency stop button, pressing the button will stop the machine from working in case of any error.
7. The whole machine is made of stainless steel material, which is durable and resistant to acid and alkali chemical cleaning damage.
8. Using high-quality concave convex and air source filters, the air will not damage the template.
9. Level 3 high-precision filtration system, the cleaning solvent can be reused multiple times without damage.
Specification
| Model | HS-600 |
| Product name | Screen printer stencil cleaner |
| Machine metarial | Stainless steel, anti-fire, explosion-proof |
| Power | Pneumatic |
| Application | Stencil,cooper screen,gule screen |
| Stencil size | standard 29inch and below |
| Cleaning solvent | Alcohol |
| Cleaning liquid capacity | Max 45L,Min20L |
| Best cleaning fluid using volume | 40L |
| Liquid consumption | 120ml/pc |
| Cleaning method |
Rotary double side pressure injection and high pressure air |
| Cleaning time | 2~4 Min |
| Drying time | 2~5 Min |
| External air supply | 0.4Mpa~0.6Mpa |
| Consumer air quantity | 400~600L/Min |
| Air outlet size | φ125*25mm |
| Solder dross filter mode | 3 level filter(10um,5um,1um) |
| Weight | 250kg |
| Machine dimension | 980MM(L)*700MM(W)*1730MM(H) |
