| Brand Name: | HSTECH |
| Model Number: | HS-801 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

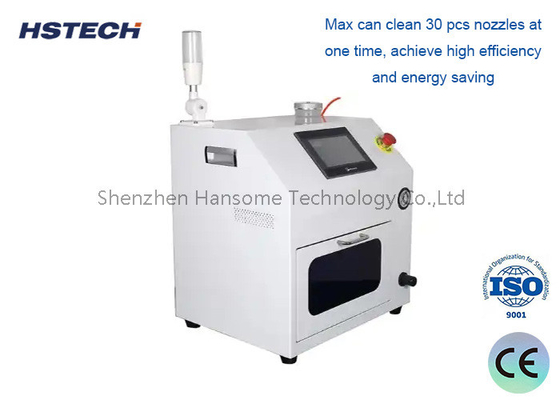

Full Automatic Compact SMT Nozzle Cleaner SMT Nozzle Cleaning Machine for smt machine line
Specification
| Model | HS-801 |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 0201-2512inch |
| Noise | 35-60dB |
Product Features
1. By default, 30 nozzles are placed and a nozzle holder is used to reduce the time for nozzle change and achieve high efficiency.
2. Compatible with nozzles of PANASONIC, FUJI, JUKI, SIPLACER, YAMAHA, SAMGUNG and other installed machines.
3. Uses compressed air for flushing and drying.
4. Full window design for easy maintenance and operation.
5. Use industrial pure water, which is harmless to all kinds of nozzles and reflectors. 6.
6. Equipped with fault alarm and emergency brake system, with overload protection system.
7. The machine adopts streamline design, with beautiful appearance;
8. Humanised design, start and stop by pressing external button; 9;
9. Touch screen + PLC distributed control, stable and reliable performance;
10. Rubbish collection, easy maintenance.
Machine details
Cleaning performance
