| Brand Name: | HSTECH |
| Model Number: | HS-300 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per week |
Blade Moving PCB Separator, HS-300, 400mm Length, Single Motor Control
Introduction
This machine HS-300 is a blade moving circuit board separator with upper round and lower straight blade design. When cutting, the V groove is placed on the straight blade, and the upper circular blade moves to complete the spear cutting, with little force to protect the circuit board components from damage.
Features
1.Cutting V-groove planks.
2.Durable blade, can be shaped at least twice.
3.Round blade height adjustable, adapt to different printed circuit boards.
4. Blade moving operation, small force, single motor control, easy to operate.

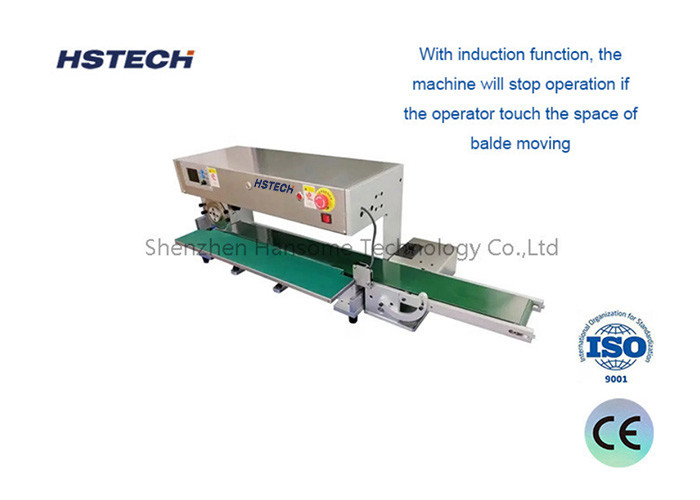

5. Sensor function, touch protection, machine stop.
6. Double protection device to ensure safety.
7. High quality blades, durable.
Specification
| Model | HS-300 | |||
| Voltage | 110V/220V(optional) | |||
| Power | 100W | |||
| Efficient cutting length | 5-360mm | |||
| Blade size | Circular blade φ125*3mm, Linear blade 360*45*6mm | |||
| Blade material | Import high quality high speed steel tool | |||
| Separating speed | 300mm/s | |||
| V-cut thickness | 1/3 of the board | |||
| Separating width | Best 1-200mm | |||
| Machine size | 620*320*450mm | |||
| Weight | 50kg | |||
