| Brand Name: | HSTECH |
| Model Number: | HS-801 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

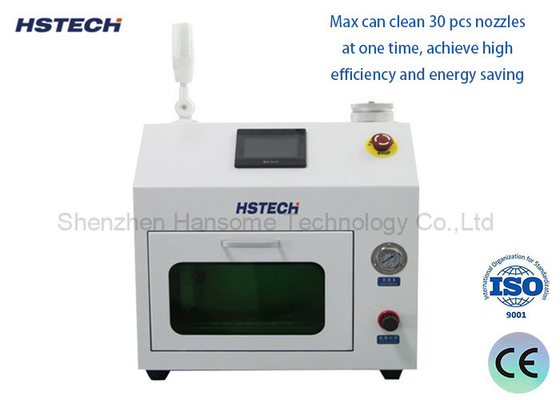

Touch Screen Control SMT Cleaning Equipment Max Clean 30 Nozzles Automatic Nozzle Cleaning Unit
Specification
| Model | HS-801 |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 0201-2512inch |
| Noise | 35-60dB |
Product Features
1. By default, 30 nozzles are placed and nozzle brackets are used to reduce the time for nozzle replacement and achieve high efficiency.
2. Compatible with nozzles for installation machines such as PANASONIC, FUJI, JUKI, SIPLACER, YAMAHA, SAMGUNG, etc.
3. Use compressed air for flushing and drying.
4. Full inspection window for easy maintenance and operation.
5. Using industrial pure water is harmless to all types of nozzles and reflector plates.
6. Equipped with fault alarm and emergency braking system, with overload protection system.
7. This machine adopts a streamlined design, with a beautiful and generous appearance;
8. Humanized design, can start and stop by pressing external buttons;
9. Touch screen+PLC distributed control, stable and reliable performance;
10. Garbage collection, easy to maintain.

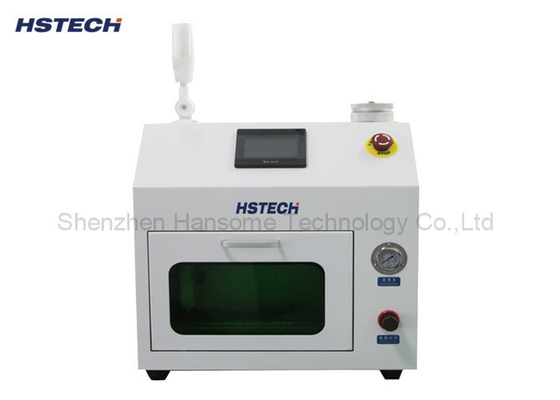

Machine details
Cleaning performance
