| Brand Name: | HSTECH |
| Model Number: | HS-801 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

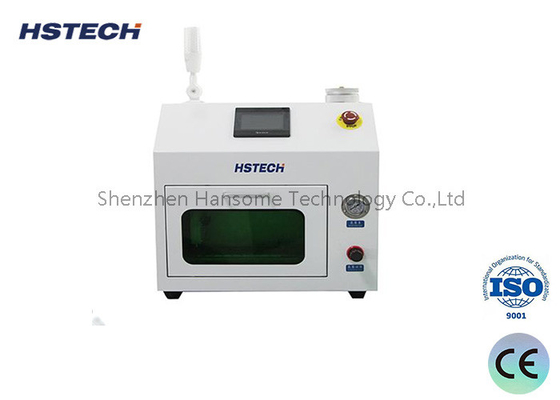

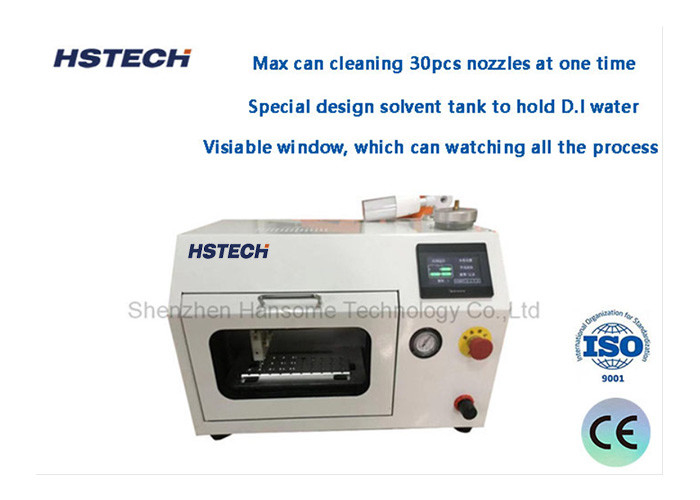

Low Noise and Easy Operation SMT Cleaning Equipment with Touch Screen Panel
Product Features
1,Nozzle cleaner, with pure compressed air and D.I water as power and solvent, clean and safe.
2,Integrated cleaning and drying in one, the nozzle can be quickly reused.
3,Elegant white appearance, right side control panel, beautiful and practical.
4,Light indicates the status of the machine.
5,With D.I water storage tank, the top side has a cover and water level scale.
6,Transparent cover window, the cleaning process at a glance.
7,Multi-safety protection, including alarm, emergency stop and overload protection.
8, touch screen control, easy to operate.
9,One-button operation, set the time to start.
10, low noise work.
Specification
| Model | HS-801 |
| Usage | Cleaing dirty on the nozzles |
| Cleaning objects | Nozzles from all the chip mounter |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 0201-2512inch |
| Noise | 35-60dB |
