| Brand Name: | HSTECH |
| Model Number: | HS-120ST |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |

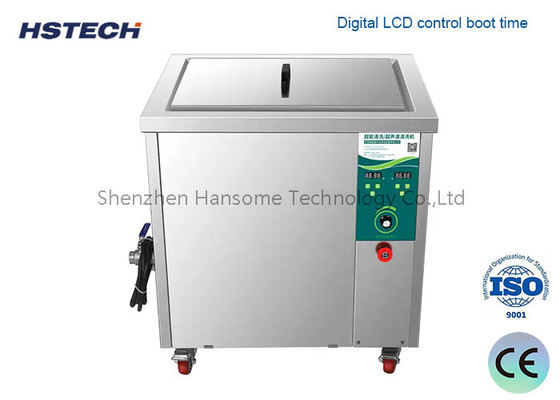

38L Ultrasonic Cleaner for SMT Cleaning Equipment with Constant Temperature System
Features
1. The cleaning effect of high-power transducers is significant and can be observed macroscopically;
2. The object emits light after cleaning;
3. Digital LCD controls the startup time;
4. Made of stainless steel and inner liner cover, more upscale;
5. The waterproof performance is greatly improved, and safer products are durable and long-lasting;

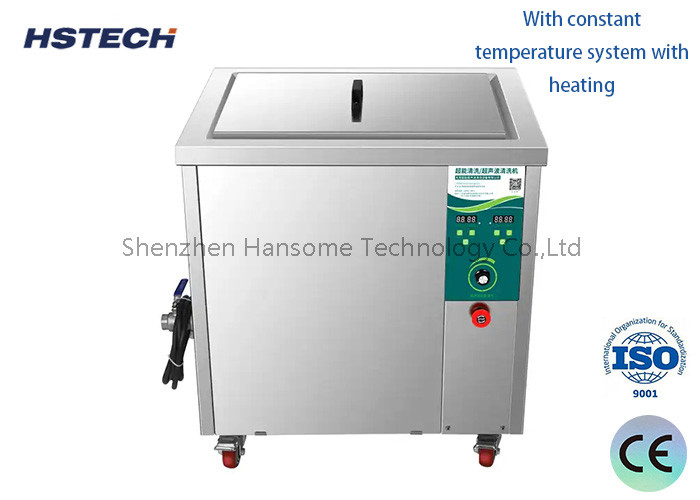

6. A constant temperature system with heating.
Specification
| Model | HS-120ST |
| Ultrasonic frequency | 28/40 kHz |
| The tank material | Stainless steel SUS304 stamping slot |
| Tank capacity | 38L |
| Timer | 1~99 min adjustable |
| Heater | 0 ~80℃ adjustable |
| Power | AC 100 ~ 120 V, 60 Hz/AC 200 ~ 240 V, 50 Hz |
| Ultrasonic power | 40~600 W adjustable, 12 transducers |
| Heating power | 1500W |
| The tank size | 500 x 300 x 250 mm (L x W x H) |
| Shape dimension | 670 x 480 x 700 mm (L x W x H) |
| N.W | 30KG |
| G.W | 35KG |
| Certification | CE,RoHS |
Ultrasonic device
1. Ultrasonic installation method: Install shock-absorbing plates at the bottom;
2. 72 vibrators installed at the bottom of the storage tank; Ultrasonic power: 0-3600W adjustable
3. Ultrasonic power: 0~1800W * 2 units (continuously adjustable), ultrasonic frequency 28/40KHz
4. The ultrasonic transducer adopts a pure industrial impact head imported from South Korea, with high cleaning power and long service life;
5. We use the latest bonding technology from South Korea and imported specialized adhesives to ensure better bonding performance between the transducer and the vibrating surface. No debonding considerations, stable performance. The transducers have been reinforced and equipped with high-frequency wires.
