| Brand Name: | HSTECH |
| Model Number: | HS-300 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per week |
Blade Moving PCB Depaneling Equipment 400mm Length Single Motor Control
Introduction
This machine (HS-300) is a blade moving circuit board separator, using the upper circular blade and the lower linear blade design, before cutting the V-shaped groove on the linear blade, the upper circular blade to move to complete the spear cut, the force is relatively small, the circuit board does not need to move to protect the components on the circuit board to avoid damage.
Features
1,This machine can be used to cut all kinds of boards with V-groove.

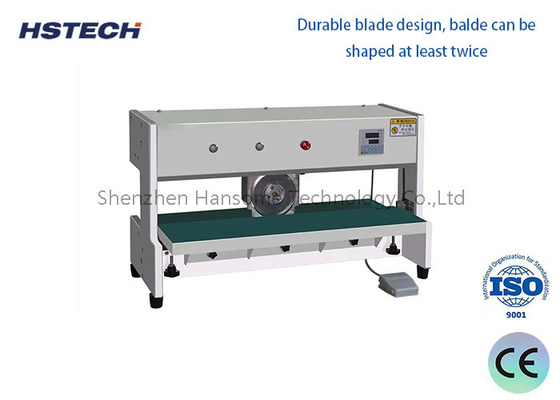

2,Durable blade design, the blade can be shaped at least twice.
3,The height of the circular blade is adjustable to fit various printed circuit boards with different height components.

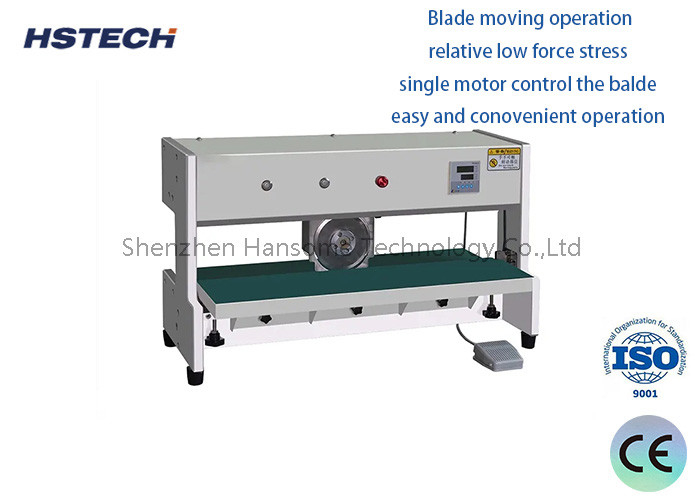

4,Blade moving operation, relatively small force, single motor control blade, simple and convenient operation.
5,With induction function, if the operator touches the space where the blade moves, the machine will stop running.
6,Safety, with double protection device, no need to worry about safe production.
7, Durable, with high quality blades.
Specification
| Model | HS-300 | |||
| Voltage | 110V/220V(optional) | |||
| Power | 100W | |||
| Efficient cutting length | 5-360mm | |||
| Blade size | Circular blade φ125*3mm, Linear blade 360*45*6mm | |||
| Blade material | Import high quality high speed steel tool | |||
| Separating speed | 300mm/s | |||
| V-cut thickness | 1/3 of the board | |||
| Separating width | Best 1-200mm | |||
| Machine size | 620*320*450mm | |||
| Weight | 50kg | |||
