| Brand Name: | HSTECH |
| Model Number: | HS-F306 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
Effortless Operation 4 Groups Blade LED Hard Strip PCB Depaneling Equipment
This machine uses 4 sets of blades for cutting, with 4 blades in each group, 2 blades in the upper part and 2 blades in the lower part. It cuts in steps and disperses cutting stress on each set of blades, greatly reducing stress intensity and protecting circuit boards from deformation. It is suitable for aluminum and copper plates with high hardness.
Features

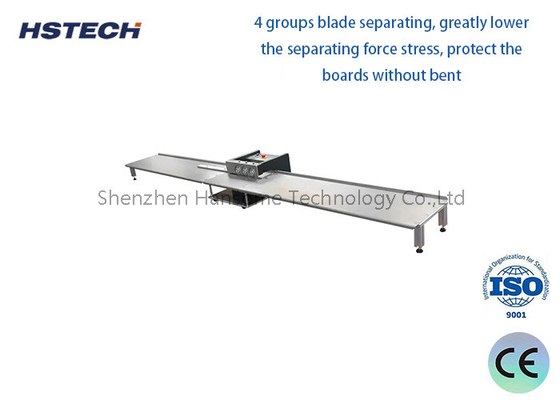

1. Four sets of blades are separated, greatly reducing separation stress and protecting the sheet from bending.
2. Four sets of blades are graded and separated to ensure that the cutting surface of the board is flat and free of burrs.

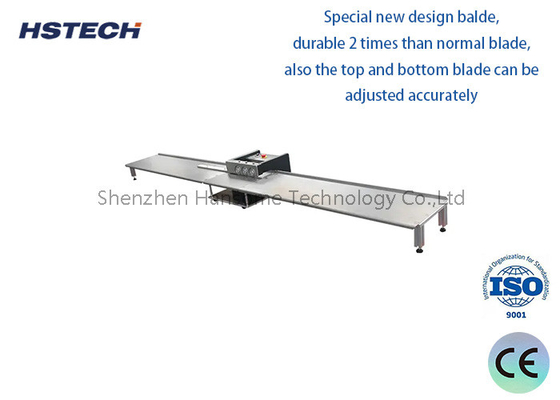

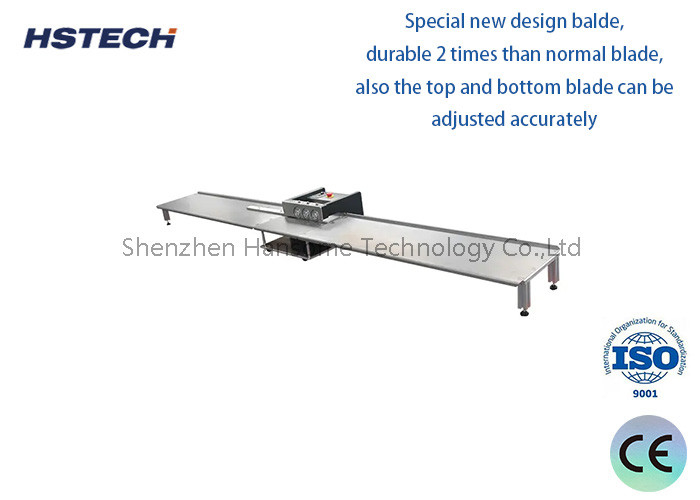

3. The special new design is twice as durable as ordinary blades, and the upper and lower blades can be precisely adjusted.
4. The whole machine has high precision, convenient maintenance, and safe operation.
5. There are two options for platform length: 1.2 meters and 2.4 meters, and the platform can also be fed with grooves for easy collection of separated wooden boards.
6. The platform height is adjustable, with a range of 0~50mm.
Specification
| Model | HS-F360 | |||||||
| Production name | 4 groups high speed strip separating machine | |||||||
| Machine dimension | 390mm×400mm×330mm | |||||||
| Platform dimension | 1200mm(or 2400mm)×426mm×200mm | |||||||
| Blade dimension | Circular blade ϕ60mm×12mm×3mm | |||||||
| Separating thickness | 0.8~3mm, 1/3 of the board thickness | |||||||
| Voltage | AC220V/110V, 50/60Hz | |||||||
| Air supply | No | |||||||
| Machine power | 90W | |||||||
| Separating speed | 1mm-2000mm/s | |||||||
| Separating length | 100mm-unlimited | |||||||
| Separating width | 4-100mm best, single board width,not whole pin board width | |||||||
| Suitable boards | LED strip board,aluminum and fiber glass boards | |||||||
| Weight | Around 40kg | |||||||
