Introduction

Chip Mounter Nozzle Cleaner. This is a very important auxiliary component of electronic assembly equipment, mainly used for automatic cleaning of the nozzle of the placement machine.

Here are its specific features and working principles:

Cleaning principle
The Nozzle Cleaner mainly uses a combination of chemical cleaning and mechanical stirring. First, the nozzle is immersed in a special cleaning liquid, which can dissolve and disperse impurities such as welding slag and oil on the surface of the nozzle. Then, the Nozzle Cleaner will perform mechanical stirring through a rotating brush or a high-speed turbine to further remove stubborn stains.

Automation design
The Nozzle Cleaner is usually integrated inside the placement machine and linked to the host control system. It can automatically detect the nozzle status and start the cleaning program when the preset contamination threshold is reached. The entire cleaning process does not require manual intervention, which improves cleaning efficiency and consistency.

Cleaning fluid regeneration
The Nozzle Cleaner is equipped with a cleaning fluid circulation and regeneration system. It can filter and centrifuge the used cleaning fluid, remove impurities and reuse it, reducing chemical consumption.

Drying function
After cleaning, the Nozzle Cleaner can also perform hot air or vacuum drying on the nozzle to ensure that it is completely dry before the next use. This can prevent moisture from contaminating electronic components.

Monitoring function
Nozzle Cleaner usually integrates status monitoring and data recording functions. It can monitor parameters such as cleaning fluid concentration and temperature in real time, and store cleaning records in the system to provide data support for production management.

Product Features

1, This nozzle cleaner work with pure compressor air as power, using D.I water as solvent, cleanness and not harmful.

2, The whole process including cleaning and drying, ensure the nozzles can be reuse quickly.

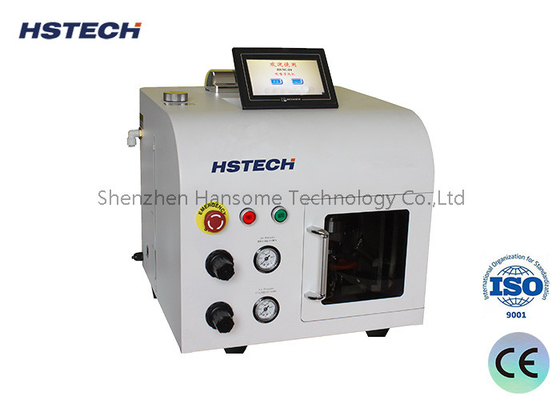

3, Elegant white color for the machine surface, control panel at the right side, good appearance.

4, Light display for the machine status.

5, Equip with a D.I water storing tank, with a cover at the top side, also with water level scale display.

6, Transprent cover window, can fully watching the cleaning process.

7, Safety protect, alarm function when cleaning and drying is finished. Also with emergency stop button control and electricity overload protection.

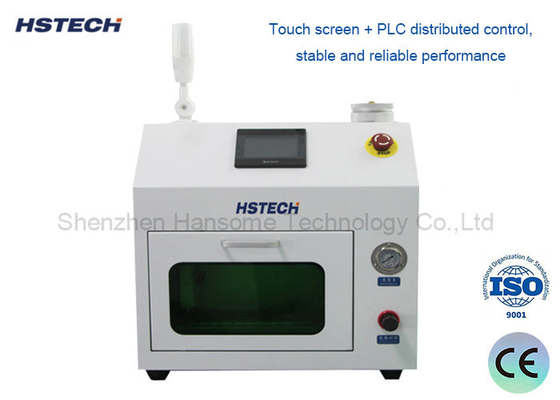

8, Touch screen panel control, easy to learn and understand.

9, One button operation, after set the cleaning time and drying time, press the start button to start, and wait till it finished.

10, Low working noise.

Specification
