Introduction

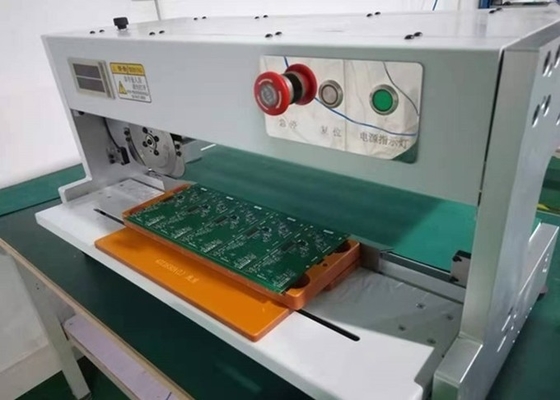

This machine(HS-300) is the blade moving PCB separator, using upper circular and down linear blade design,before cutting, put the v-groove onto the linear blade,the upper circular blade moving to finish spearating, the force stress is relative low, the board don't need move will protect the components on the board, avoid damaging.

The main functions are as follows:

1.The high-precision blade moving mechanism can accurately cut along the edge of the PCB and divide the entire PCB into the required individual panels. This greatly improves the efficiency and consistency of the division.

2.The blade position and cutting force can be automatically adjusted according to the different specifications of PCBs to ensure that the PCB will not be damaged during the division process. At the same time, a safety protection device is provided to improve the safety of operation.

3.Equipped with an automatic loading and unloading system, it can be seamlessly connected with the production line to achieve automatic separation and loading of PCBs. It greatly reduces the burden of manual operation.

4.Adopting a PLC control system with human-machine interface and data monitoring functions. It can store cutting parameters of different types of PCBs to improve operational flexibility.

5.The overall structure is compact, occupies a small area, and is easy to integrate into the production line. At the same time, it has the characteristics of low noise and low power consumption, which meets the environmental protection requirements of modern factories.

Features

1, This machine can use for cutting all kinds of boards with v-slot.

2, Durable blade design, balde can be shaped at least twice.

3, Circular blade height can be adjusted to fit the different kinds of PCB with different height components.

4, Blade moving operation,relative low force stress,single motor control the balde, easy and conovenient operation.

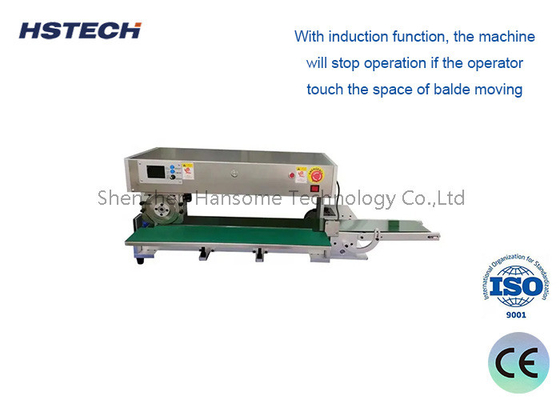

5, With induction function, the machine will stop operation if the operator touch the space of balde moving.

6, Security, with double protective device,no need worry about the security production problem.

7, Durable, using high quality good material blade.

Specification

Use scenarios

1. Electronic assembly production line: After the PCB assembly is completed, the entire PCB needs to be split into individual panels. Blade Miving PCB Separator can automatically complete this process, improving the efficiency and quality of splitting.

2. Multi-layer PCB manufacturing: During the multi-layer PCB manufacturing process, different layers of PCB need to be separated for subsequent processes. Blade Miving PCB Separator can cut accurately to ensure lossless splitting between different layers.

3. Electronic product repair and refurbishment: When repairing or refurbishing electronic products, it is necessary to disassemble the PCB and replace damaged parts. Blade Miving PCB Separator can quickly and accurately separate the PCB, facilitating subsequent repair operations.

4. PCB testing and inspection: In the PCB testing and quality inspection process, the PCB needs to be split into small specifications for targeted testing. Blade Miving PCB Separator can flexibly split to meet different testing needs.

5. PCB industry research and development: In the process of developing new PCB processes and new materials, PCBs need to be frequently split for analysis and testing. Blade Miving PCB Separator can improve the efficiency and accuracy of this process
