Feet Switch Pneumatic PCB Depaneling Machine PCB Depaneling Equipment With Linear Guillotine Cutting Blade

Feet Switch Pneumatic PCB Depaneling Machine PCB Depaneling Equipment With Linear Guillotine Cutting Blade

Introduction

This machine is pneumatically driven and electric control, built in 6 digits counter which is convenient for counting the cuts.

The linear knife type depaneling machines were designed to depanel prescored panelboards carefully, without bending or tension stress.Even sensitive SMD-components like ceramic capacitors will not be damaged by the depaneling process.

It suitable for all kinds of pcb board,LED aluminum board,COB board, cooper board,etc. It’s widely used, low cutting force stress, few cutting burrs,and the board side is smooth and flat, it’s a best choice for high quality board cutting.

Main functions are as follows:

Automatic depaneling
Adopting pneumatic driving mechanism, it can quickly and accurately depanel multi-layer PCB along the predetermined path.
It greatly shortens the time consumption of manual depaneling and improves production efficiency.

High-precision cutting
Equipped with professional tools and guide rail system, it can cut along the depaneling line designed for PCB.
Ensure the neat edge of PCB after depaneling, reduce burrs and damage.

Flexible adjustment
The cutting path and force parameters can be flexibly adjusted according to PCBs of different sizes and shapes.
It has strong adaptability and can be applied to depaneling of circuit boards of various specifications.

Safe and reliable
It is equipped with a safety shield to prevent operators from accidentally contacting moving parts.
The electronic control system can program the operating parameters to ensure stable and reliable operation.

Automation
It can be integrated with the production line to realize fully automatic depaneling and eliminate human intervention.
It is conducive to improving the automation level and consistency of the production line.

Features

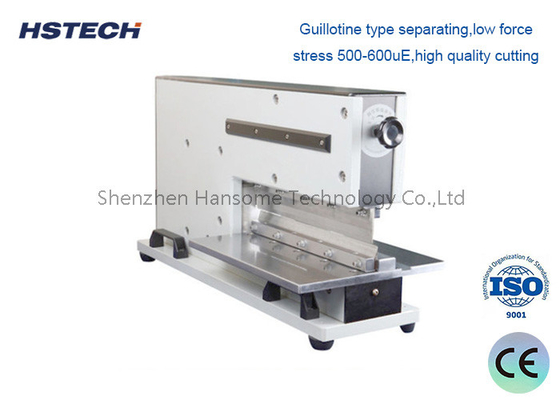

1, Guillotine type separating,low force stress 500-600uE,high quality cutting.
2, Suitable for all kinds of material board,also can cutting high hardness,aluminum,and cooper board.

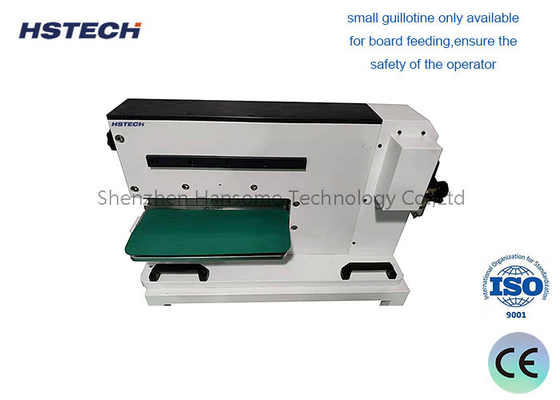

3, Security: small guillotine only available for board feeding,ensure the safety of the operator.
4, Very easy to learn and operating.
5, Durable, using import high quality steel made cutting tool.
