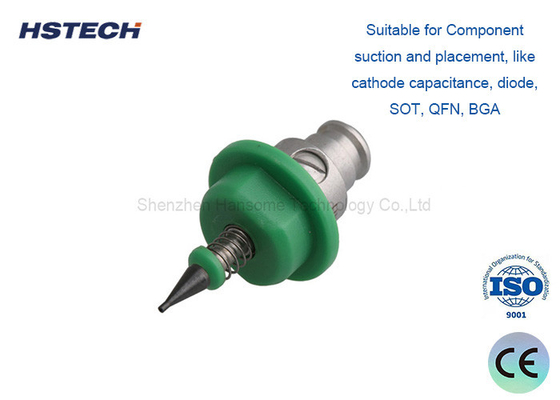

Green And Sliver 500 ASSY 1.0×0.5 JUKI SMT Nozzle with Metal Material For Pick And Place Machien

Original New JUKI 500 501 505 508 SMT Nozzle Metal Material For Pick And Place Machien

Function Overview
JUKI nozzle is a key component of the SMT machine for sucking and placing SMD components.
Nozzles of different sizes and types can be adapted to various SMD components of different sizes and shapes.
The performance of the nozzle directly affects the placement accuracy and efficiency of the SMT machine.

Main features
Adopt high-precision vacuum adsorption technology to ensure stable and reliable component handling.
The nozzle material and surface treatment process are optimized to reduce the deformation of components during the suction process.
Nozzle heads of different sizes can be quickly replaced to adapt to components of various specifications.
Integrated temperature control function can adjust the nozzle temperature according to different component types.
Adopt intelligent monitoring to detect the nozzle status and alarm in time.

Working principle
When the SMT machine grabs the component, the nozzle extends and sucks the component up through vacuum adsorption.
After the component is accurately positioned to the target position, the nozzle slowly releases the vacuum to accurately attach the component.
The temperature control system adjusts the nozzle temperature in real time according to the characteristics of the component to ensure that the component is not damaged by heat.
The intelligent monitoring system detects the nozzle status in real time and alarms in time when abnormalities are found.

Application scenarios
JUKI nozzles are widely used in JUKI series SMT products.
Applicable to SMT production of various electronic products, such as mobile phones, tablet computers, industrial control equipment, etc.
It is a key component to achieve high-precision placement and plays an important role in the electronics manufacturing industry.

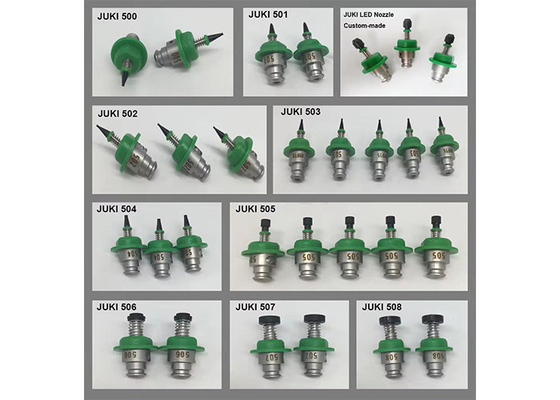

JUKI Nozzle Series

E36087290A0 JUKI NOZZLE 500 ASSY.1.0×0.5
E36007290A0 JUKI NOZZLE 501 ASSEMBLY 0.7×0.4
E36017290A0 JUKI NOZZLE 502 ASSEMBLY O 0.7/O 0.4
E36027290A0 JUKI NOZZLE 503 ASSEMBLY O 1.0/O 0.6
E36037290A0 JUKI NOZZLE 504 ASSEMBLY O 1.6/O 1.0
E36047290A0 JUKI NOZZLE 505 ASSEMBLY O 3.5/O 1.7
E36057290A0 JUKI NOZZLE 506 ASSEMBLY O 5.0/O 3.2
E36067290A0 JUKI NOZZLE 507 ASSEMBLY O 8.5/O 5.0
E36077290A0 JUKI NOZZLE 508 ASSEMBLY O 9.5/O 8.0
E36177290A0 JUKI NOZZLE 512
E36187290A0 JUKI NOZZLE 513
E36197290A0 JUKI NOZZLE 514
E36207290A0 JUKI NOZZLE 515
E36217290A0 JUKI NOZZLE 516
E36227290A0 JUKI NOZZLE 517
E36227290A0 JUKI NOZZLE 518
E36227290A0 JUKI NOZZLE 519
E36227290A0 JUKI NOZZLE 520
E36227290A0 JUKI NOZZLE 521
E36227290A0 JUKI NOZZLE 522
E36227290A0 JUKI NOZZLE 523
E36227290A0 JUKI NOZZLE 524
E36227290A0 JUKI NOZZLE 525
E36227290A0 JUKI NOZZLE 526
E36227290A0 JUKI NOZZLE 527
E36227290A0 JUKI NOZZLE 528
E36227290A0 JUKI NOZZLE 529
E36227290A0 JUKI NOZZLE 530
E36227290A0 JUKI NOZZLE 531
E36227290A0 JUKI NOZZLE 532
E36227290A0 JUKI NOZZLE 533
E36227290A0 JUKI NOZZLE 534
E36227290A0 JUKI NOZZLE 535
E36237290A0 JUKI NOZZLE 800
E36247290A0 JUKI NOZZLE 801
E36257290A0 JUKI NOZZLE 802
E36267290A0 JUKI NOZZLE 803
EG350729M01 JUKI NOZZLE 804
