| Brand Name: | HSTECH |
| Model Number: | HS-320 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

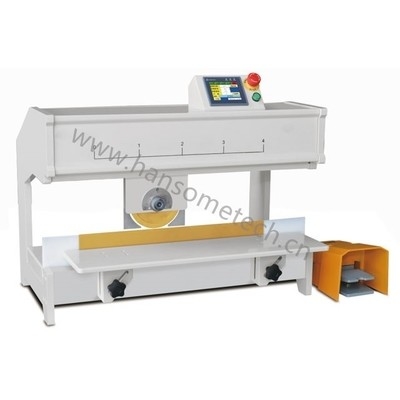

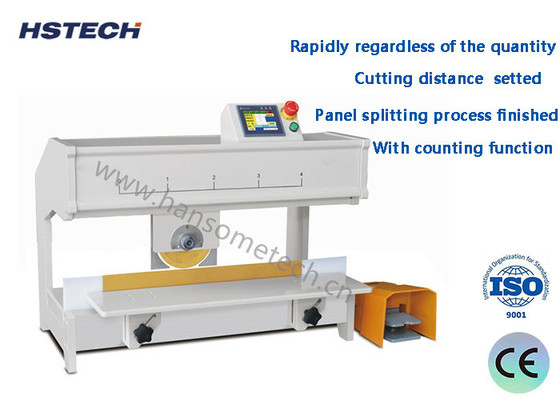

Double Linear Blade Cutting Ultra Low Cutting Force Stress Pneumatic PCB Separator
This machine is a ultra low cutting force stress Pneumatic PCB separator, widely used to all PCBA boards.(with V-groove or without)
Features
1, Double linear blade cutting,suitable for smd thin board,aluminum board,and all kinds of thickness boards,cutting range less than 2mm, no safety problem.
2, Lower the inner stress below 500uE,protect the components from damage.
3, Not friction cutting,no blade metal residue.
4, Pneumatic power, no cutting stress.
5, Both upper and down blade can be adjustable,use the knob to adjust the gap based on the pcb thickness,fit the V-groove thickness.
Automatic panel separation function
PCB Separator adopts automatic panel separation technology, which can quickly and accurately cut the whole PCB into individual PCB panels.
Through the cooperation of the robot arm and the panel separation blade, efficient automatic panel separation operation is realized.
Flexible size adaptability
The equipment can be quickly adjusted according to PCB boards of different sizes, and the maximum supported panel separation size is 600mm×400mm.
It can meet the panel separation needs of PCB boards of various specifications.
High-precision panel separation
PCB Separator adopts a high-precision positioning system and panel separation mechanism to ensure that the accuracy of each panel separation is as high as ±0.1mm.
It effectively avoids damage or burrs to the PCB board during the segmentation process.
Safe and reliable design
The equipment is equipped with safety protection devices, such as emergency stop buttons, etc., to improve operational safety.
The fully enclosed design does not generate flying debris during the cutting process.
Easy to operate
The equipment is equipped with a touch screen control panel, which can easily set the panel separation parameters and monitor the panel separation process.
High degree of automation, the operator only needs to simply load the PCB board to complete the panel separation
Specification
| Model | HS-320 |
| Efficient cutting length | 350mm(larger size need customized) |
| Machine size | 650*500*1130mm |
| Air pressure | 0.5~0.7Mpa |
| Upper components height | 39mm(max) |
| Down components height | 19mm(max) |
| Pcb thickness range | 0.1-2.0mm(with V-groove),0.1-1.0mm(without V-groove) |
| Air consumption | 200-400(L/min) |
| Weight | 200kg |
