High Rank V-Cut Blade Miving PCB Separator PCB Depaneling Equipment With Induction Function

High Rank V-Cut Blade Miving PCB Separator PCB Depaneling Equipment With Induction Function

Introduction

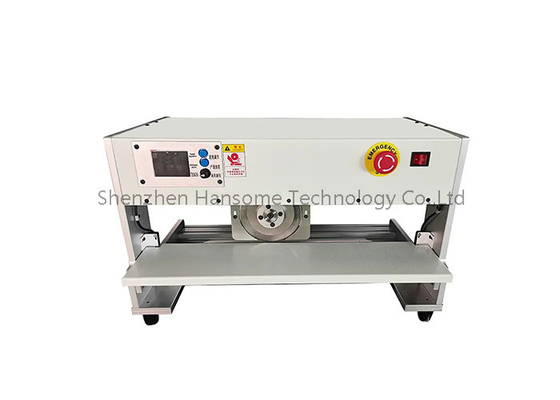

This machine(HS-300) is the blade moving PCB separator, using upper circular and down linear blade design,before cutting, put the v-groove onto the linear blade,the upper circular blade moving to finish spearating, the force stress is relative low, the board don't need move will protect the components on the board, avoid damaging.

Automatic board separation function
The equipment adopts automatic board separation technology, which can quickly and accurately cut the whole PCB into individual PCB panels.
By dividing the board by the robot arm and the blade, the efficiency of board separation and production efficiency are greatly improved.

Flexible size adaptability
It can be quickly adjusted according to the size of the PCB board, suitable for PCB boards of various specifications.
The maximum board separation size supported is 600mm×400mm, covering most SMT production needs.

High-precision board separation
The high-precision board separation mechanism and positioning system are adopted to ensure that the accuracy of each board separation is as high as ±0.1mm.
It can effectively avoid damage or burrs to the PCB board during the segmentation process.

Safe and reliable design
The equipment is equipped with safety protection devices, such as emergency stop buttons, etc., which improves the safety of operation.
The fully enclosed design avoids the splashing of debris during the cutting process.

Easy to operate
The equipment is equipped with a touch screen control panel, which can easily set the board separation parameters and monitor the board separation process.
The degree of automation is high, and the operator only needs to simply load the PCB board to complete the board separation.

Features

1, This machine can use for cutting all kinds of boards with v-slot.

2, Durable blade design, balde can be shaped at least twice.

3, Circular blade height can be adjusted to fit the different kinds of PCB with different height components.

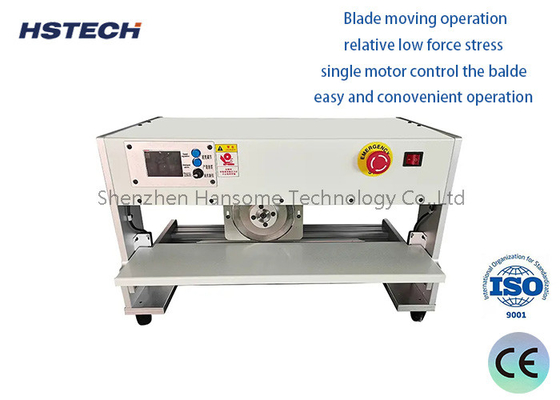

4, Blade moving operation,relative low force stress,single motor control the balde, easy and conovenient operation.

5, With induction function, the machine will stop operation if the operator touch the space of balde moving.

6, Security, with double protective device,no need worry about the security production problem.

7, Durable, using high quality good material blade.

Specification
