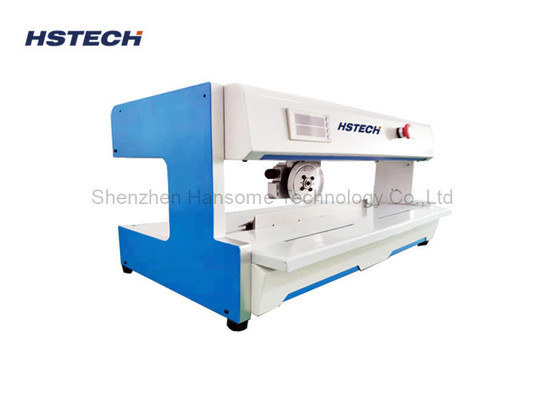

Buzzer Alarm Protection PCB Separator V-Cut Blade Moving Operation For FR4 PCB Board

Buzzer Alarm Protection Built In V-Cut PCB Separator Blade Moving Operation For FR4 PCB Board

Introduction
V-cut PCB Separator is an automated equipment for splitting printed circuit boards (PCBs), mainly used in the back-end process of the electronics manufacturing industry. The following is a detailed introduction to V-cut PCB Separator:

Product Overview:
V-cut PCB Separator is an automated equipment specifically used to split processed PCB boards.
It can accurately split PCB boards into independent PCB units along the pre-designed V-groove line.
It is widely used in the back-end process of electronic product manufacturing, communication equipment, industrial control and other fields.

Main functions and features:
High degree of automation, greatly improving the efficiency and consistency of splitting.
Adopt high-precision cutting tools and positioning mechanisms to ensure splitting accuracy and cleanliness.
Programmable cutting parameters, such as cutting depth, cutting speed, etc., meet the needs of different PCB thicknesses and materials.
Equipped with automatic loading and unloading mechanisms, the splitting process can be completed without manual intervention.
Integrated automatic control system to achieve intelligent monitoring and fault diagnosis.
Compact design, small footprint, can be seamlessly integrated with the production line.
Simple operation and convenient maintenance ensure long-term stable operation of the equipment.
Main application areas:
Manufacturing of consumer electronic products such as mobile phones, tablets, and laptops.
Manufacturing of communication equipment, such as routers, switches, base stations, etc.
Manufacturing of industrial control equipment, such as industrial controllers, industrial robots, etc.
Manufacturing of medical electronic equipment, such as medical diagnostic equipment, therapeutic equipment, etc.
Back-end segmentation processes of other electronic products.
Selection and use suggestions:
Choose the appropriate V-cut PCB Separator model based on the PCB size, material, quantity and other factors of the production line.
Operate and maintain in strict accordance with the manufacturer's instructions and maintenance manual.
Check the tool wear regularly and replace and repair it in time.
It can cooperate well with upstream and downstream equipment such as placement machines and testers.

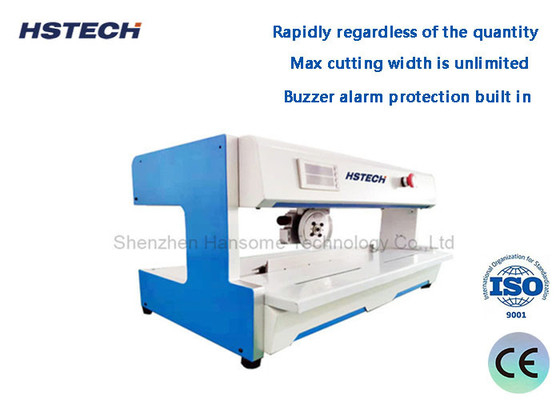

Features

1, It can cut rapidly regardless of the quantity, very economic.

2, Upper circular blade and bottom linear blade all using import high quality steel, can be sharpen and repeat using.

3, Moving range:(0~400mm/600mm)as customers' request, circular blade can be adjustment(0~5mm),suitable for different thickness board, slove the problem for differenct V-cut groove.

4, The max cutting width is unlimited, single PCB best at 1~200mm.

5, The operation platform can be adjustment, based on the height of upper components of the PCB, standard machine the height is less than 32mm.

6, Buzzer alarm protection built in, also the light curtain and protective blade double safety guarantee, avoid operator injuiry.

Specification

Board samples(Suitable for all kinds of V-groove PCB board:FR4, aluminum board,fiber glass board, LED board, LED strip board)
