V-groove PCB Separating Cutter with 400mm Length, Circular Blade Moving
Introduction

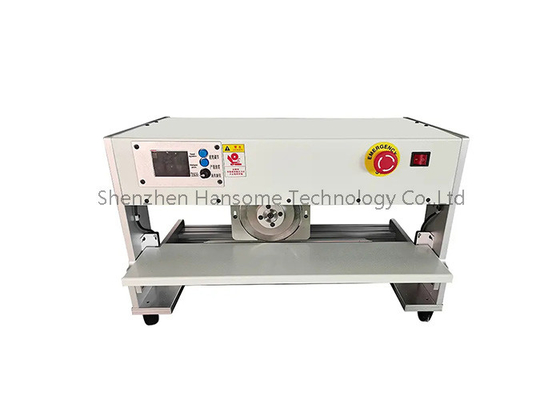

This machine(HS-300) is the blade moving PCB separator, using upper circular and down linear blade design,before cutting, put the v-groove onto the linear blade,the upper circular blade moving to finish spearating, the force stress is relative low, the board don't need move will protect the components on the board, avoid damaging.
Features
1, This machine can use for cutting all kinds of boards with v-slot.
2, Durable blade design, balde can be shaped at least twice.
3, Circular blade height can be adjusted to fit the different kinds of PCB with different height components.

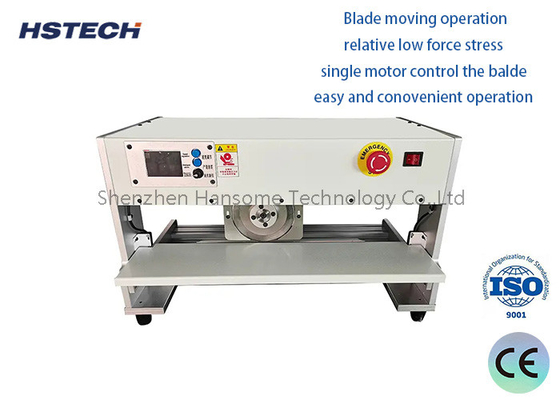

4, Blade moving operation,relative low force stress,single motor control the balde, easy and conovenient operation.
5, With induction function, the machine will stop operation if the operator touch the space of balde moving.
6, Security, with double protective device,no need worry about the security production problem.
7, Durable, using high quality good material blade.
Specification
| Model | HS-300 | |||
| Voltage | 110V/220V(optional) | |||
| Power | 100W | |||
| Efficient cutting length | 5-360mm | |||
| Blade size | Circular blade φ125*3mm, Linear blade 360*45*6mm | |||
| Blade material | Import high quality high speed steel tool | |||
| Separating speed | 300mm/s | |||
| V-cut thickness | 1/3 of the board | |||
| Separating width | Best 1-200mm | |||
| Machine size | 620*320*450mm | |||
| Weight | 50kg | |||
Advantage
1. Connecting multiple boards after soldering can often damage the circuit or break electronic components. This machine uses a knife walking motion for segmentation, which can completely reduce stress, prevent solder cracking and component breakage, and improve production efficiency and quality.
2. Adopting the method of upper circular knife and lower flat knife, the board is placed on the lower flat knife. With a press of the switch, the upper circular knife moves horizontally to the set point, that is, the PCB board is cut and divided without wire detachment, the cut is flat, and there are no burrs.
