| Brand Name: | HSTECH |
| Model Number: | HS-F306 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

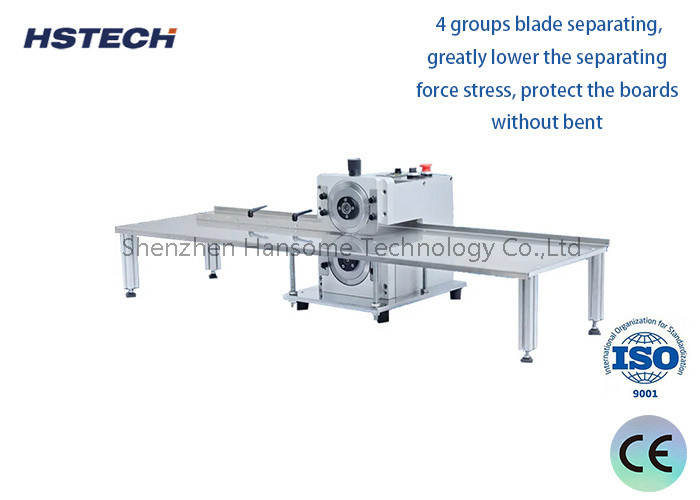

Four Groups Blade LED Strip PCB Depaneling Machine with Platform
This machine use 4 groups blade cutting, each groups 4 blade, top 2 balde and bottom 2 blade,step by step cutting, disperse the cutting force stress to each group blade, greatly lower down the force strss, protect the board without deformation, it suitable for hardness aluminum and copper boards.
Features
1, 4 groups blade separating, greatly lower the separating force stress, protect the boards without bent.
2, 4 groups blade step separating, make sure the board cutting surface smooth, without glitch.
3, Special new design balde, durable 2 times than normal blade, also the top and bottom blade can be adjusted accurately.
4, The whole machine is high precision, easy to maintenance, safety operation.

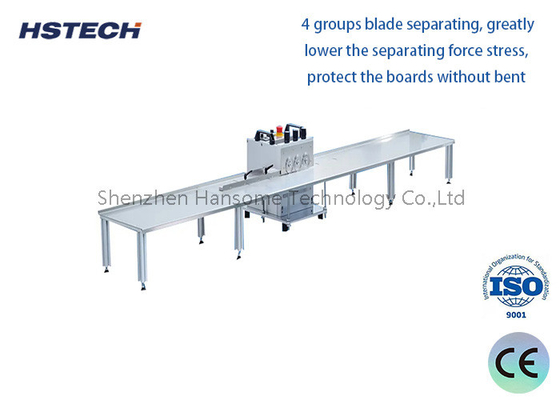

5, The platform length has options for 1.2meter and 2.4 meter, also the platform can be fed with a trough to collect the separated boards conveniently.
6, The platform height can be adjusted, range 0~50mm.
Specification
| Model | HS-F360 | |||||||
| Production name | 4 groups high speed strip separating machine | |||||||
| Machine dimension | 390mm×400mm×330mm | |||||||
| Platform dimension | 1200mm(or 2400mm)×426mm×200mm | |||||||
| Blade dimension | Circular blade ϕ60mm×12mm×3mm | |||||||
| Separating thickness | 0.8~3mm, 1/3 of the board thickness | |||||||
| Voltage | AC220V/110V, 50/60Hz | |||||||
| Air supply | No | |||||||
| Machine power | 90W | |||||||
| Separating speed | 1mm-2000mm/s | |||||||
| Separating length | 100mm-unlimited | |||||||
| Separating width | 4-100mm best, single board width,not whole pin board width | |||||||
| Suitable boards | LED strip board,aluminum and fiber glass boards | |||||||
| Weight | Around 40kg | |||||||
HSTECH set the goal for "High quality and Smart”, that based on the concept of "Quality-Oriented and Customer-orented", and combined the industry feature, smart technology persuit for the smart factory.As for the after-sale service, we insist on "responsibility", we will take reaction at the first when we got quality feedbacks,and service our customers all the time.
