| Brand Name: | HSTECH |
| Model Number: | HS-310 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 200sets per month |

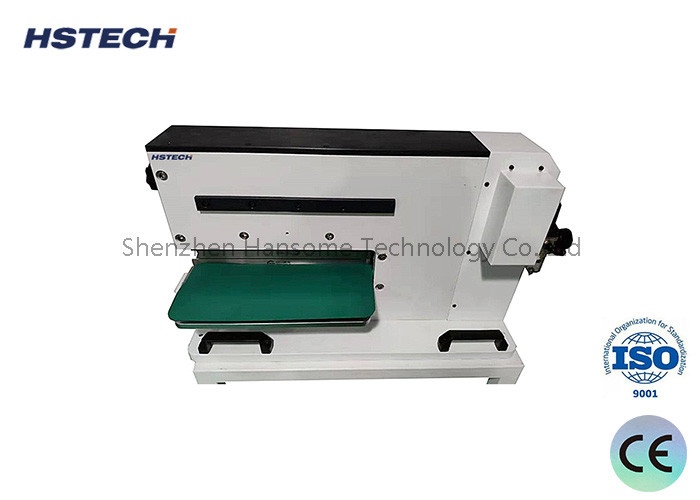

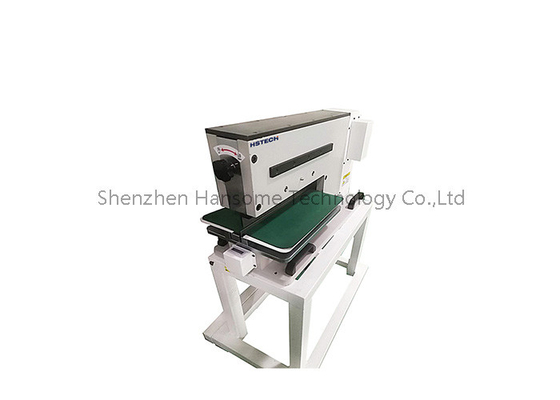

Air Pressure Supply Max Cutting Length 360mm PCB Depaneling Machine with CE
Introduction
This machine is pneumatic powered, work with 2 linear guillotine type blade, ultra low force stress, smooth and flat cutting, without glitch.
The linear knife type depaneling machines were designed to depanel prescored panelboards carefully, without bending or tension stress.
Even sensitive SMD-components like ceramic capacitors will not be damaged by the depaneling process.
It suitable for all kinds of pcb board,LED aluminum board,COB board, cooper board,etc
Features
1, Guillotine type separating,low force stress500-600uE,high quality cutting.
2, Suitable for all kinds of material board,also can cutting high hardness,aluminum,and cooper board.
3, Security: small guillotine only available for board feeding,ensure the safety of the operator.
4, Very easy to learn and operating.
5, Durable, using import high quality steel made cutting tool.
Specification
| Model | HS-310 |
| Power | 10W |
| Air supply | 0.5~0.8Mpa |
| Efficient cutting length | 1-360mm |
| Linear blade size | 360*43.5*6mm |
| Blade material | Import high quality high speed steel tool |
| Separating speed | 1-300mm/s |
| V-cut thickness | 0.3-3.5mm |
| Air consumption | 200-400(L/min) |
| Machine size | 700*325*400mm |
| Weight | 130kg |
| Suitable board | All V-cut board |
