| Brand Name: | HSTECH |
| Model Number: | HS-ES801 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |

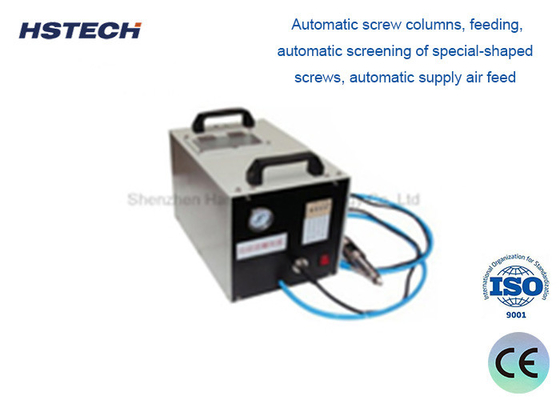

Handheld Screwdriver Screw Locking Machine with Auto Screw feeder System
Application
Apply for Keyboard, switch, socket, router, charger, calculator, remote control, plastic products, plastic
Toys and other screws intensive product
Features
1. Automatic screw columns, feeding, automatic screening of special-shaped screws, automatic supply air feed.
2. Do not hand take screw, screw automatic feeding, the liberation of the left hand, take and products
3. The efficiency of up to 60 particles per minute, can be unlocked as fast as
4. Strong universality, handheld screwdrivers, flexible operation, application of fixed-point operations
5. Electric group sets of lightweight, torque adjustment is accurate and convenient, ensure that the locking quality
6. Compact, transmission distance is 4 meters, the machine can be placed in working on stage, save space
7. Single hand locking operation, easy piezoelectric batch can complete the locking screw operation.
8. Screw supply fast and reliable locking operation can be in any direction.
9. Safety without noise.
10. Liquid crystal display, counting, alarm function.
Specfication
| Model | HS-ES801 |
| Screw capacity: | M2*6/5000PCS |
| Efficiency: | 60-90pcs/min |
| Screw feeding speed: | 0.5s/pcs (standard screw) |
| Feeding type: | Blowing |
| Feeding length: | 1- 4Meter |
| Power supply: | AC220V 50HZ |
| Power: | 40W |
| Working pressure: | 0.4Mpa-0.6Mpa |
| Weight: | App 10KG |
| Dimension: | 400*250*190mm |
| Noise | Lower 65 |
