| Brand Name: | HSTECH |
| Model Number: | HS-100 |
| MOQ: | 1 sets |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 200 sets per month |

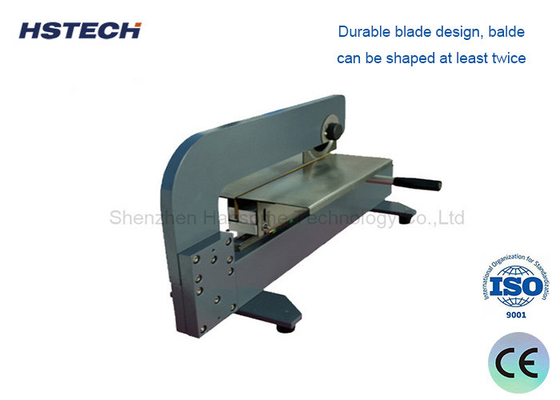

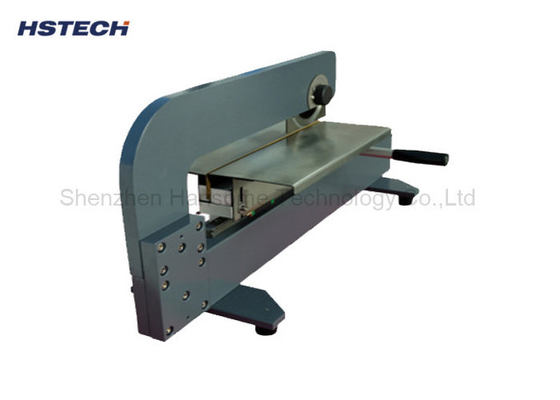

Versatile PCB Depaneling Equipment for 1-100mm Boards with Circular amp Linear Blades
Introduction
Using upper circular blade and bottom linear blade separating, ensure the board is fixed, lower the force stress, well protected the PCB boards, avoide the damage to the board, especially for boards with components for double side. Don't need air pressure or electricity, fully manual operation, the tool part is equipped with a hand guard to prevent operators from being injured during operation, very safe.
Features
1, This manual PCB separator suitable for glass fiber board, FR4 board, Paper base board, etc linear boards.
2, The upper circular and bottom linear blades are fixed, operator just push the boards to finish separating.
3, There is a knob to adjust the grap between the circular and linear blade, to fit different PCB thickness.
4, No air pressure and electricity, do don'e need connect the AC220V, or 110V
5, Easy opeation, people can use this machine without training.
6, The separating blade can be shaped many times, also very economic.
Specification
| Model | HS-100 |
| Product name | Manual hand push PCB Separator |
| Blade material | High speed steel |
| Blade size1 | Ф125mm×3mm(circular blade) |
| Blade size2 | 365mm×43.5mm×6mm(linear blade) |
| PCB thickness | 1/3 board thickness |
| PCB width | 1-100mm |
| PCB length | 1mm-350mm |
| Speed | Manual |
| Air pressure/power | No |
| Suitable boards | Glass fiber, FR-4,FR-1, paper base board |
| Machine size | 425MM*265MM*445MM |
| Weight | 35kg |
About Packaging
