V-groove PCB Separating Cutter with 400mm Length, Circular Blade Moving
Introduction

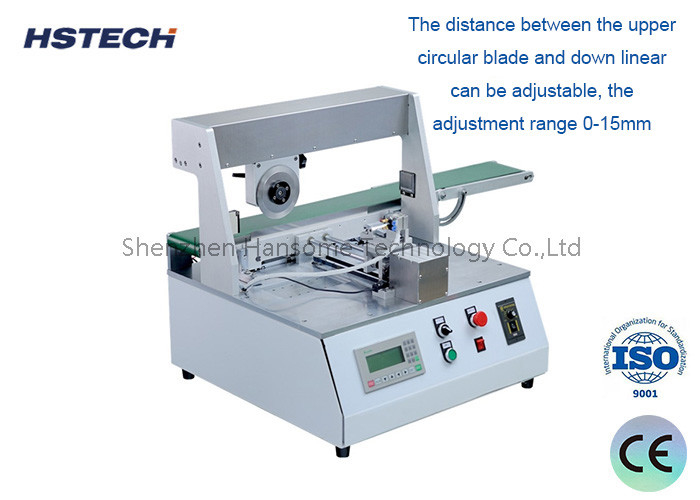

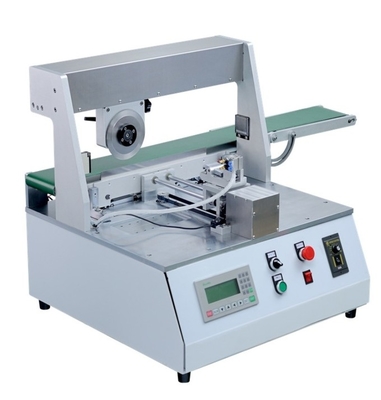

This machine(HS-300) is the blade moving PCB separator, using upper circular and down linear blade design,before cutting, put the v-groove onto the linear blade,the upper circular blade moving to finish spearating, the force stress is relative low, the board don't need move will protect the components on the board, avoid damaging.
Features
1, This machine can use for cutting all kinds of boards with v-slot.
2, Durable blade design, balde can be shaped at least twice.
3, Circular blade height can be adjusted to fit the different kinds of PCB with different height components.
4, Blade moving operation,relative low force stress,single motor control the balde, easy and conovenient operation.
5, With induction function, the machine will stop operation if the operator touch the space of balde moving.
6, Security, with double protective device,no need worry about the security production problem.
7, Durable, using high quality good material blade.
Specification
| Model | HS-300 | |||
| Voltage | 110V/220V(optional) | |||
| Power | 100W | |||
| Efficient cutting length | 5-360mm | |||
| Blade size | Circular blade φ125*3mm, Linear blade 360*45*6mm | |||
| Blade material | Import high quality high speed steel tool | |||
| Separating speed | 300mm/s | |||
| V-cut thickness | 1/3 of the board | |||
| Separating width | Best 1-200mm | |||
| Machine size | 620*320*450mm | |||
| Weight | 50kg | |||
