| Brand Name: | HSTECH |
| Model Number: | HS-801 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

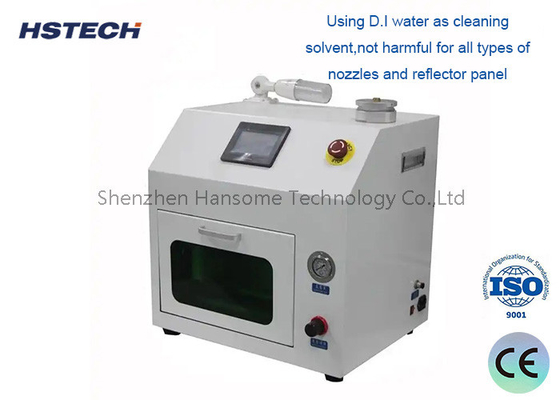

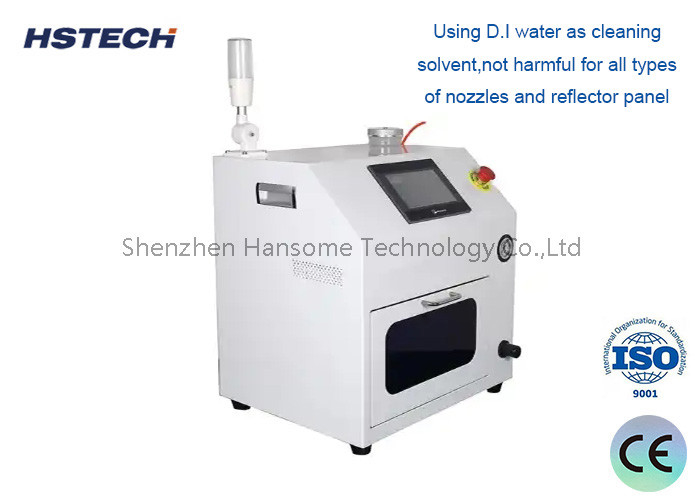

High Pressure Spraying Cleaning Touch Screen SMT Nozzle Cleaner With 304 Stainless Steel
Introduce
The fully automatic nozzle cleaning machine is suitable for cleaning nozzles of various specifications. It adopts the latest cleaning technology and only uses pure water and air source to solve the problem of nozzle maintenance, which accounts for 32% of the SMT adsorption rate and placement rate. problem.
HS-800 nozzle cleaning machine can automatically complete the cleaning and drying process, it adopts multiple spraying nozzles spraying cleaning method, uses fluid mechanics to shred water, produces very strong water mist, forms powerful kinetic energy at the speed of sound and sprays on the nozzle, forming a continuous shape above the nozzle, clean the dirty on the surface and inside of the nozzles, it mainly used for cleaning small components, such as 0603,0402,0201,01005 and high precision nozzles.
SMT Nozzle Cleaner Equipment principles and uses
By breaking up the water, extremely fine water mist is produced, which is sprayed onto the suction nozzle with powerful kinetic energy at supersonic speed, forming a continuous energy field above the suction nozzle to be cleaned, crushing dirt on the surface and inside. Independent cleaning, no damage to the suction nozzle. Using this device for daily nozzle maintenance and cleaning work can achieve a thorough cleaning effect in a safe state. It reduces the scrapping cost of nozzles caused by traditional cleaning methods, extends the life of nozzles, and plays a vital role in the maintenance of the placement machine to ensure that the placement machine operates in a better condition.
SMT Nozzle Cleaner usually has the following features and functions:
1.Cleaning nozzles: SMT Nozzle Cleaner can effectively clean residues on the surface of SMT nozzles, such as solder paste, adhesives, particles, etc., by using specific cleaning media or solvents. It can clean the nozzle by spraying, soaking or brushing to ensure that the nozzle surface is dust-free and pollution-free.
2.Automated operation: SMT Nozzle Cleaner usually has automated operation functions and can perform the cleaning process through preset programs and parameters. It may have functions such as automatic feeding, cleaning, discharge and drying to improve cleaning efficiency and reduce manual intervention.
3.Multiple cleaning methods: SMT Nozzle Cleaner can provide a variety of different cleaning methods to adapt to different types and sizes of nozzles. Common cleaning methods include jet cleaning, ultrasonic cleaning, rotating brushing, etc. These methods can be selected based on the characteristics of the nozzle and usage to ensure thorough cleaning results.
4.Control and monitoring: SMT Nozzle Cleaner usually has a control system and monitoring functions to monitor the parameters and status of the cleaning process. It may have functions such as temperature control, cleaning time control, liquid level monitoring, etc. to ensure the stability and consistency of the cleaning process.
5.Maintenance and Care: SMT Nozzle Cleaner may provide maintenance and upkeep features to ensure long-term reliability and stability of the equipment. It may have automatic cleaning system self-test and cleaning fluid replacement reminder functions to facilitate timely maintenance and upkeep.
Main functions and features
Specification
| Model | HS-800 |
| Voltage | Single phase, AC110-220V, 50H60Hz |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | PLC+Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 01005, 0201-2512inch |
| Noise | 35-60dB |
Machine size
Nozzle Tray
