| Brand Name: | HSTECH |
| Model Number: | HS-310 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 200sets per month |

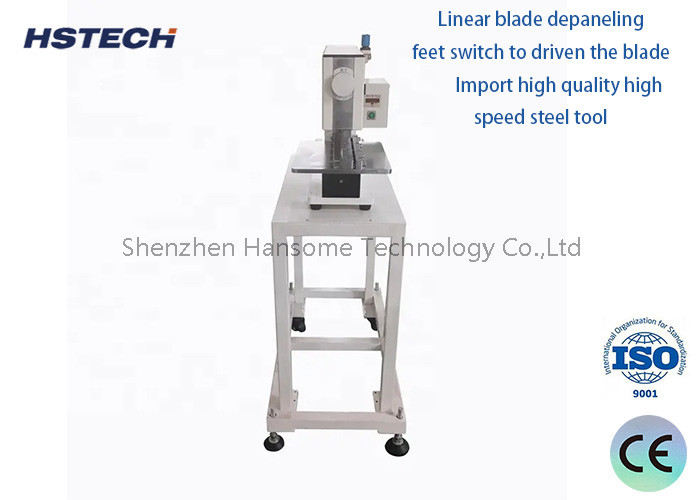

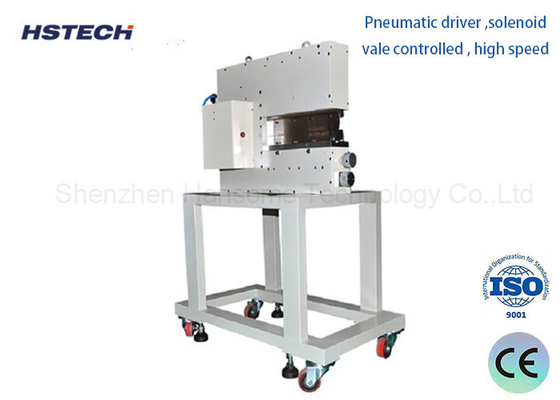

High Speed Steel Guillotine PCB Depaneling Equipment for High Requirement Boards
Introduction
This machine powered by air pressure and electricity combined, using double linear blade cutting, suitable for high requirement PCB depaneling,
it has ultra low cutting force stress, well protected boards without bent, also the cutting surface is smooth and flat, without glitch. At the same, the
machine equipped with a counter which can counting the separating times.
Features
1. Linear blade depaneling, feet switch to driven the blade.
2. Shears boards safely with parts as close as 0.5mm to the score line.
3. Boards insert into the blade through the v-slot.
4. Need air pressure supplying, pneumtic power, also electricity needed as well.
5. The distance between these two blades can be adjusted.
6. Standard height stainless steel structure to hold the depanelizer.
7. Wheel moving.
Specification
| Model | HS-310 |
| Power | Penaumatic and electricity |
| Air supply | 0.5~0.8Mpa |
| Efficient cutting length | 1-360mm |
| Linear blade size | 360*43.5*6mm |
| Blade material | Import high quality high speed steel tool |
| Separating speed | 1-300mm/s |
| V-cut thickness | 0.3-3.5mm |
| Air consumption | 200-400(L/min) |
| Machine size | 700*325*400mm |
| Weight | 130kg |
| Suitable board | All V-cut board |
