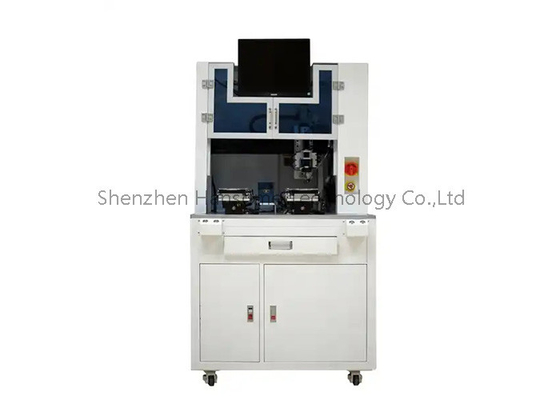

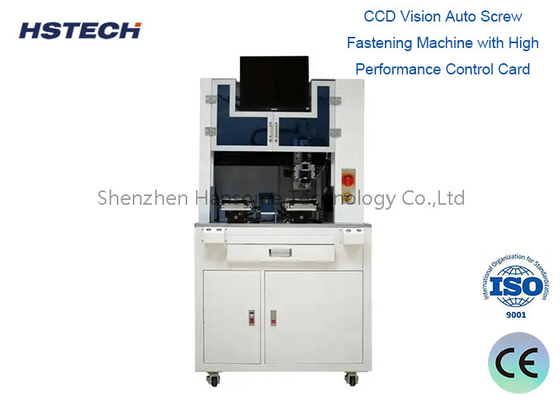

CCD Vision 6 Axis Screw Fastening Machine for High Precision Locking with PC Display
Introduction
This machine is a 4 axis high performance CCD automatic screw fastening machine, using industrial camera for positioning, work with LED source to achieve the accurate position, mainly used for locking the small size screws. This machine using HIWIN P-Class KK slide module and Panasonic servo motor, and the optoelectric parts all using schneider and omron brand to make the whole machine stable.
Application
This CCD auto screw locking machine is widely used for locking the casing of smart phone, power adapter, PCB electronic products, batteries, small household applicance, wifi routers, power supply, toy wheels, and other automotive parts and small electronic products.
Specfication
| Model | HS-VS810 |
| Product name | Auto CCD screw fastening machine |
| Power supply | AC380V |
| Working axis | 4 axis |
| Screw diameter range | 0.8-2.0mm |
| Repeat accuracy | ±0.02mm |
| Motor | Panasonic servo motor |
| Linear guide/screw | HIWIN brand KK module |
| Control card | LEADSHINE brand high performance control card |
| Screw driver | Vauguard |
| Camera | Germany brand BASLER industrial camera |
| Lens | High resolution high performance lens |
| Light source | Industrial LED source |
| Vacuum generator | AIRTEC |
| Feeder | NSRI from Japan |
| Optoelectronic parts | Schneider / Omron |
| Machine size | 930*780*1700mm |
| Gross weight | 350kg |
