| Brand Name: | HSTECH |
| Model Number: | HS-VS800 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50pcs per month |

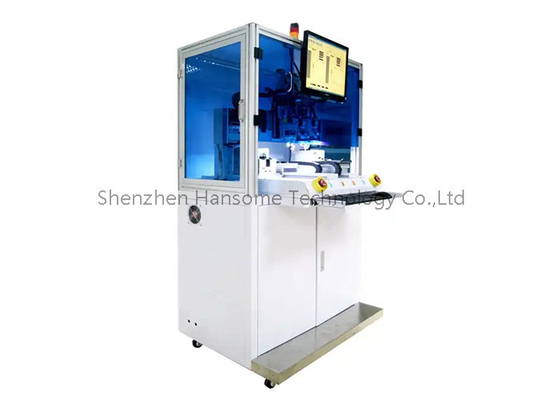

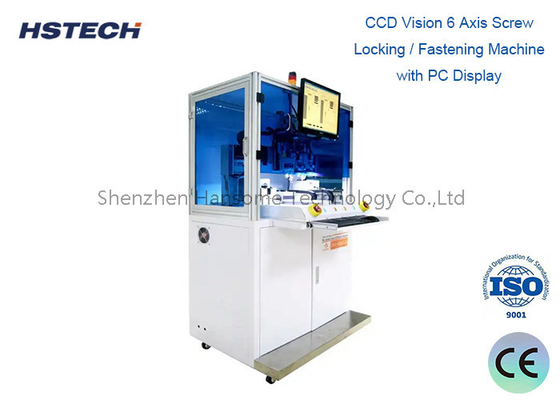

CCD Vision 6 Axis Screw Locking / Fastening Machine with PC Display
Introduction
This machine is a high presicion screw locking machine, with CCD positioning, work with the Windows system, which can see all the operation
steps of screws fastening, this machine using HIWIN P-Class KK slide module and Panasonic servo motor, custom type nail feeder, never stuck nail, also use the laser positioning sensor to detect the height of locking. High precision screwing with servo intelligent electric screw driver
All the actions of the fastening equipment are completed by high-performance motion control card
Application
This CCD auto screw locking machine is widely used for locking the casing of smart phone, power adapter, PCB electronic products, batteries, small household applicance, wifi routers, power supply, toy wheels, and other automotive parts and small electronic products.
Specfication
| Model | HS-VS800 |
| Product name | Auto CCD screw fastening machine |
| Power supply | AC380V |
| Working axis | 6 axis |
| Screw diameter range | 0.8-2.0mm |
| Repeat accuracy | ±0.02mm |
| Motor | Panasonic servo motor |
| Linear guide/screw | HIWIN brand KK module |
| Control card | LEADSHINE brand high performance control card |
| Screw driver | Vauguard |
| Camera | Germany brand BASLER industrial camera |
| Lens | High resolution high performance lens |
| Light source | Industrial LED source |
| Vacuum generator | AIRTEC |
| Feeder | NSRI from Japan |
| Optoelectronic parts | Schneider / Omron |
| Machine size | 930*780*1700mm |
| Gross weight | 350kg |
