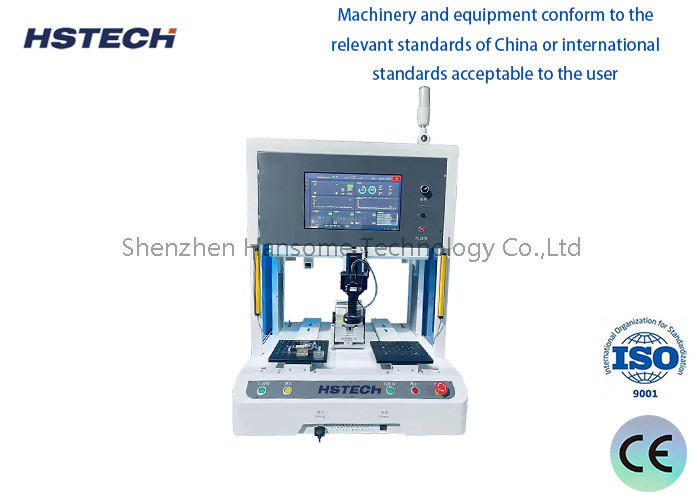

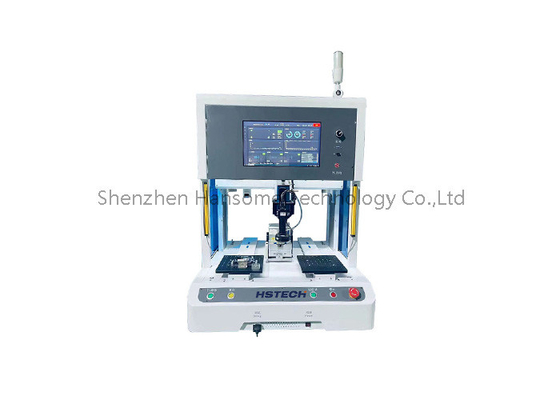

Customizable Screw Fastening Machine with Touch Screen Control and Dual Screw Driver

Brand Name:	HSTECH
Model Number:	HS-SL551S
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Desktop Screw Tightening Robot

Feeding:

Pick-up Screw

Axis:

3 Axis

Screws:

M1-M6

Moving Range:

500*500*100mm

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

Single Slide Screw Locking Machine M1-M6 500*500*100mm

Introduction

The screw machine is composed of a feeding system and a lock-locking system, where in the feeding part, also called a screw-arrangement machine or a screw feeder, is a relatively simple type of screw arranged in a row for the purpose of improving work efficiency. It's a automation equipment, widely used in the electronics industry. It compatible for screws from M1 to M6.

Specification

Model	HS-SL551S	HS-SL661S
Production name	Automatic Screw Locking Machine
Moving range(X/Y/Z)	500500100mm	600600100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M5
Machine dimension	746785800mm	845885800mm
Machine weight	50kg	55kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

1. Support computer graphics import function, can import PLT file and G code file.

2. Rich motion instructions and auxiliary instruction sets.

3. Convenient and friendly document teaching and editing functions, and provide a variety of advanced editing functions such as batch modification, array copying, graphic shifting, graphic zooming, automatic rounding, etc., with a common graphics library for customer calls.

4. Graphic display function, which can display the shape of the graphic in the processing file very intuitively.

5. Real-time dynamic display of processing trajectories.

6. Convenient and quick help system, press Shift+F1 key to call the help file in any interface.

7. Processing methods support cyclic processing, single processing, automatic processing, single-step processing.

8. After the operation parameters are edited, the action parameters are downloaded to the controller through the serial port, and the operation can be performed offline. Action parameters can also be saved In the hand-held box, easy to call.

9.can store hundreds of processing files, each file can support 1000 screw bits, you can call it out when you use it.

Application

Suitable for mobile phones, hard drives, keyboards, electronic toys, computers, DVD, dots, plastics, electrical appliances, communication equipment, electrical appliances, toys, electronic processing, motors, motors, parts, tablets, notebook computers, digital cameras, remote controls, walkie-talkie, etc.
