Introduction

This machine(HS-300) is the blade moving PCB separator, using upper circular and down linear blade design,before cutting, put the v-groove onto the linear blade,the upper circular blade moving to finish spearating, the force stress is relative low, the board don't need move will protect the components on the board, avoid damaging.

Features and functions:

Cutting methods: PCB depanel machines use different cutting methods. Common methods include cutting blades, saw blades, V-knives, laser cutting, etc. The specific cutting method depends on the material, thickness and requirements of the PCB board.

Automated operation: Plate splitting machines usually have automated operation functions, including automatic feeding, positioning, cutting and discharging, to improve production efficiency and operational convenience.

Positioning and Alignment: PCB depanelers are usually equipped with positioning and alignment systems to ensure accurate cutting positions and angles. This can be achieved through image recognition, sensors or mechanical clamping.

Cutting accuracy: Since there may be small-sized components, lines, and pads on the PCB, the splitter needs to have high-precision cutting capabilities to ensure the quality of the split circuit board.

PLC control: Plate splitting machines are usually operated and controlled by a programmable logic control (PLC) system, which can be programmed as needed to achieve cutting of different sizes and shapes.

Cutting speed: The cutting speed of the splitter is usually adjustable and can be adjusted as needed to achieve optimal production efficiency.

Safety protection: In order to ensure the safety of operators, PCB depanelers are usually equipped with safety devices, such as protective covers, emergency stop buttons and safety sensors.

Features

1, This machine can use for cutting all kinds of boards with v-slot.

2, Durable blade design, balde can be shaped at least twice.

3, Circular blade height can be adjusted to fit the different kinds of PCB with different height components.

4, Blade moving operation,relative low force stress,single motor control the balde, easy and conovenient operation.

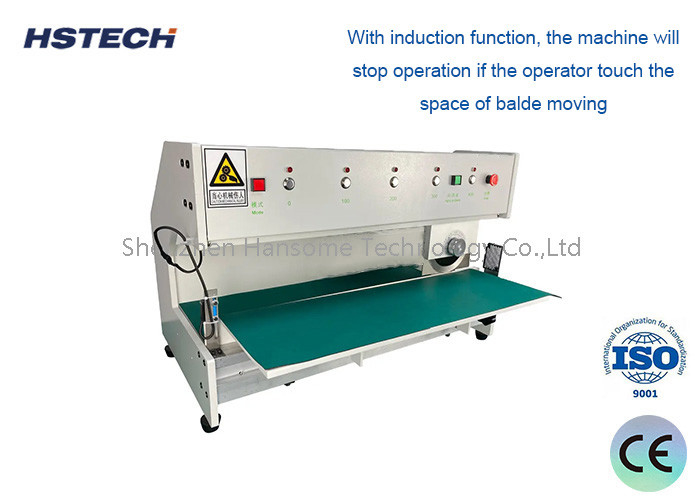

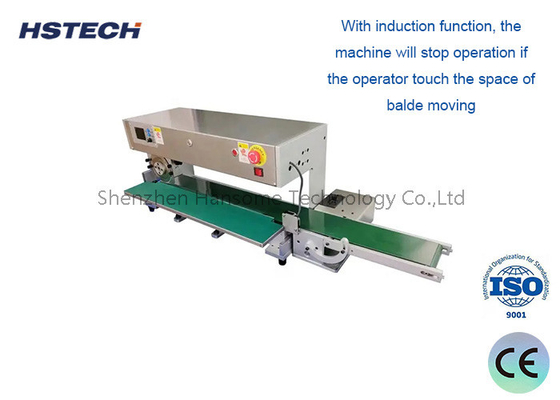

5, With induction function, the machine will stop operation if the operator touch the space of balde moving.

6, Security, with double protective device,no need worry about the security production problem.

7, Durable, using high quality good material blade.

Specification
