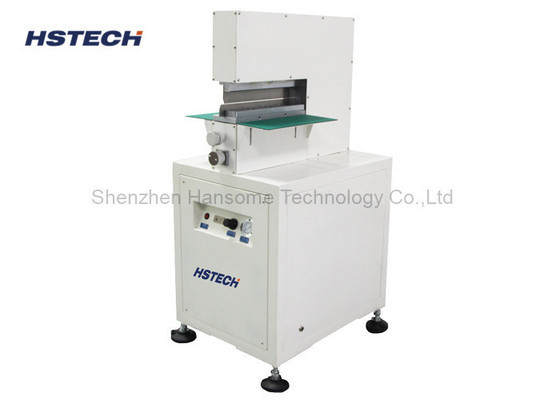

Pneumatic Power PCB Depaneling Equipment V Cut PCB Depanelizer With Double Linear Blade Cutting
Introduce
A PCB depaneler is a device used to split large printed circuit boards (PCBs) into individual panels of smaller sizes. It is an important tool in the electronics manufacturing process, used to separate the overall PCB board into individual circuit boards that can be used for assembly.
Features and functions:
1.Cutting methods: PCB depanel machines use different cutting methods. Common methods include cutting blades, saw blades, V-knives, laser cutting, etc. The specific cutting method depends on the material, thickness and requirements of the PCB board.
2.Automated operation: Plate splitting machines usually have automated operation functions, including automatic feeding, positioning, cutting and discharging, to improve production efficiency and operational convenience.
3.Positioning and Alignment: PCB depanelers are usually equipped with positioning and alignment systems to ensure accurate cutting positions and angles. This can be achieved through image recognition, sensors or mechanical clamping.
4.Cutting accuracy: Since there may be small-sized components, lines, and pads on the PCB, the splitter needs to have high-precision cutting capabilities to ensure the quality of the split circuit board.
5.PLC control: Plate splitting machines are usually operated and controlled by a programmable logic control (PLC) system, which can be programmed as needed to achieve cutting of different sizes and shapes.
6.Cutting speed: The cutting speed of the splitter is usually adjustable and can be adjusted as needed to achieve optimal production efficiency.
7.Safety protection: In order to ensure the safety of operators, PCB depanelers are usually equipped with safety devices, such as protective covers, emergency stop buttons and safety sensors.
Features

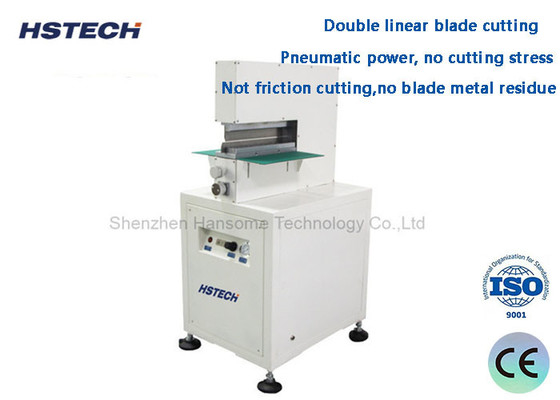

1, Double linear blade cutting,suitable for smd thin board,aluminum board,and all kinds of thickness boards,cutting range less than 2mm, no safety problem.
2, Lower the inner stress below 500uE,protect the components from damage.
3, Not friction cutting,no blade metal residue.
4, Pneumatic power, no cutting stress.
5, Both upper and down blade can be adjustable,use the knob to adjust the gap based on the pcb thickness,fit the V-groove thickness.
Specification
| Model | HS-320 |
| Efficient cutting length | 350mm(larger size need customized) |
| Machine size | 650*500*1130mm |
| Air pressure | 0.5~0.7Mpa |
| Upper components height | 39mm(max) |
| Down components height | 19mm(max) |
| Pcb thickness range | 0.1-2.0mm(with V-groove),0.1-1.0mm(without V-groove) |
| Air consumption | 200-400(L/min) |
| Weight | 200kg |

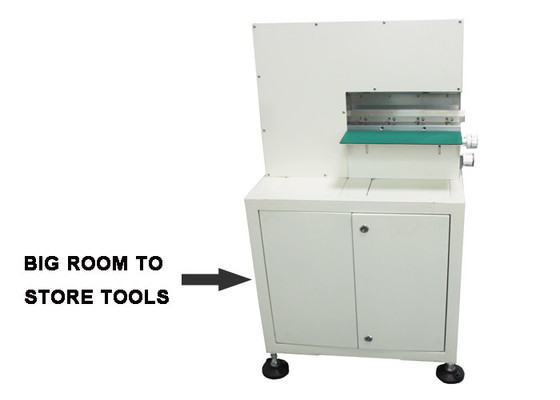

Special design with big room can store many tools
Counter and big size Air Cyliner
