| Brand Name: | HSTECH |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

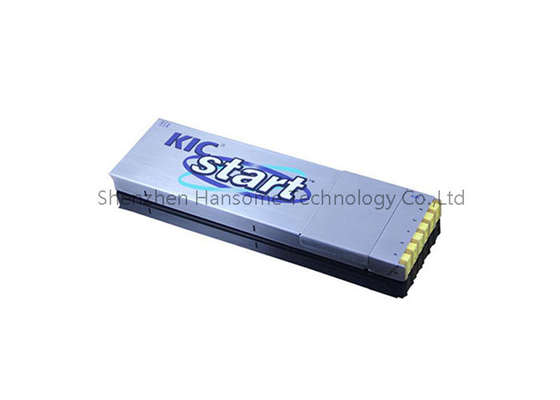

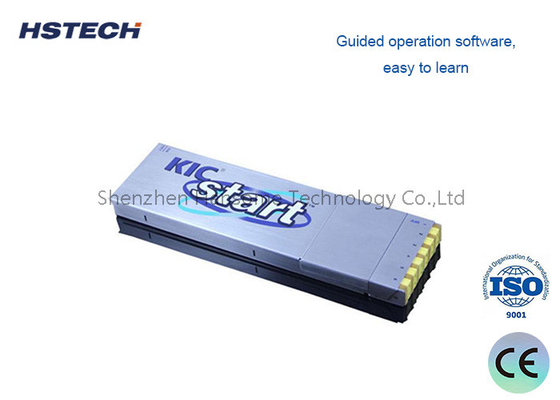

TCK Series Thermal Profiler: 80000 Data Point/Channel, 0.1℃ Resolution, RF Transceiver, Hi-Temp Adhesive Tape
1. Thermal profiler 2. Insulation box
3. Temperature test line 4. Data download line
5. Charger 6. Hi-temp adhesive tape
7. Software CD 8. “+” screwdriver 9. Tweezers
10. Insulated gloves 11. Solder wire
12. Scissors 13. Instrument box
14. User Manual 15. Acceptance Certificate
16. RF Transceiver (Choose Composition)
17. Wave Test System (Choose Composition)
Main Technical Specifications
1,Thermocouple: K-type thermocouple
2,Sampling interval:0.05sec---600sec Set with software
3,Record data:80000 point/channel, Can record 20 sets profile
4,Resolution: 0.1℃
5,Temperature measuring range: 0—1000℃
6,Temperature measuring accuracy: ±1.0℃
7,Total power: ≤120mW
8,Operating voltage:3.6VDC, rechargeable battery
9,Dimensions: 195(L)×82(W)×21(H)mm 195(L)×103(W)×21(H)mm
10, Insulation box:245(L)×100(W)×30(H)mm
10,Start Mode : Manual, specified time or specified temperature
11,Record mode: Monitor/Record
12,Connection mode:USB/RF
13,Software version:Profilermanager 2.0
Product Library Manager
Machine Library Manager
Solder Library Manager
Recipe Library Manager
Data analysis
PWI
Peak Temp,Times of overtop the Temp
Times of between Temp(Reflow)
Slope of between Temp(Reflow)
Slope of between Times(Wave)
About Packaging
About Us:
Shenzhen HanSome Technology Co.,Ltd(HSTECH)was estabilished in 2012 by prefessional and experienced engineer who wroked many years in EMS company,we specilized in PCB handling equipments at first, then we develop the PCB depaneling machine and SMT cleaning machine. HSTECH not only have professional technical team for R&D,but also have a outgoing and experienced marketing team for research and develop, grasps products developing directions, updates the products and technics to meet the continue changing demands. In the past years,we have been always keep innovating and exploing to make cost-efficient products to help our customers saving cost and labor, improving the production efficiency at the same time.
HSTECH set the goal for "High quality and Smart”, that based on the concept of "Quality-Oriented and Customer-orented", and combined the industry feature, smart technology persuit for the smart factory.As for the after-sale service, we insist on "responsibility", we will take reaction at the first when we got quality feedbacks,and service our customers all the time.
