| Brand Name: | KIC |
| Model Number: | X5 |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500pcs per month |

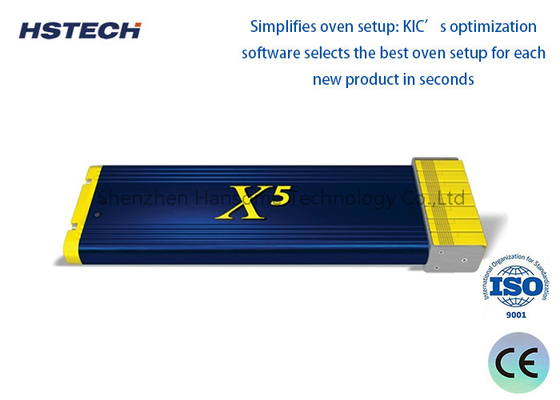

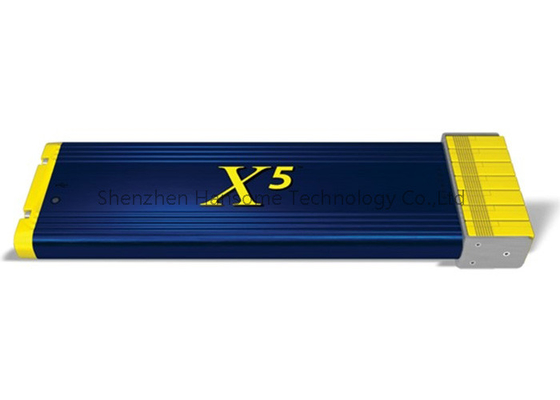

High-Performance 7-Channel Type K Thermocouple KIC X5 Thermal Profiler with USB Cable
Introduction
With 7, 9, and 12-channel models, the X5 is able to acquire a lot of data, allowing you to precisely evaluate each thermal profile and process in your factory. Measure slope, peak temperature, time above liquidous, and more. Data is transferred to your computer via a USB cable or, for RF models, wirelessly through radio frequency transmitters—no cable connection required.
KIC 'X5' Key Features
1, Robust hardware backed by 2-year warranty
2, Wireless data transfer with RF-equipped models
3, SPC (statistical process control) software included for documentation and production optimization
4, Simplifies oven setup: KIC’s optimization software selects the best oven setup for each new product in seconds
5, User-selectable setup criteria
6, Reduces profiling to a single number: The PWI (process window index) makes it easy for operators, techs, and engineers to see at a glance how close the profile comes to spec.
7, Immediate profile analysis: Objective and personnel-independent profile analysis gives you information you can bank on.
Specifications
| Model | KIC X5 |
| Dimension | 7-channel: 206 x 60 x 17 mm,with shield: 302 x 75 x 23 mm 9-channel: 206 x 75 x 17 mm,with shield: 312 x 90 x 23 mm 12-channel 206 x 98 x 17 mm,with shield: 323 x 113 x 23 mm |
| Accuracy | ± 0.5˚C |
| Resolution | 0.1˚C |
| Interal operating temp | 0˚C~85˚C |
| Sample rate | 0.1 to 10 readings/sec |
| Data points | 224,640 |
| Data transfer | Standard model USB 2.0 (Std-A/Mini-B) after datalogging run RF model Wireless over RF (radio frequency 433.92 MHz), sent real-time during datalogging run, or via USB 2.0 (Std-A/Mini-B) after datalogging run |
| Power | 3 AAA batteries, USB cable when connected to a computer |
| Thermocouple Capacity | Type K, standard (7, 9, or 12, depending on model) |
| Thermocouple Temperature Range | -150˚C to 1050˚C |
| Thermal shield | Cool Touch Stainless Steel 7 or 9 channel |
| Computer Configuration Minimum System Requirements |
Dual Core / 1 GHz processor PC w/2 GB RAM 2 GB available storage Video 1024 x 768 resolution, 16-bit 1 available USB port for data download 1 available USB port for software key |
