| Brand Name: | HSTECH |
| Model Number: | VS-600WA |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |

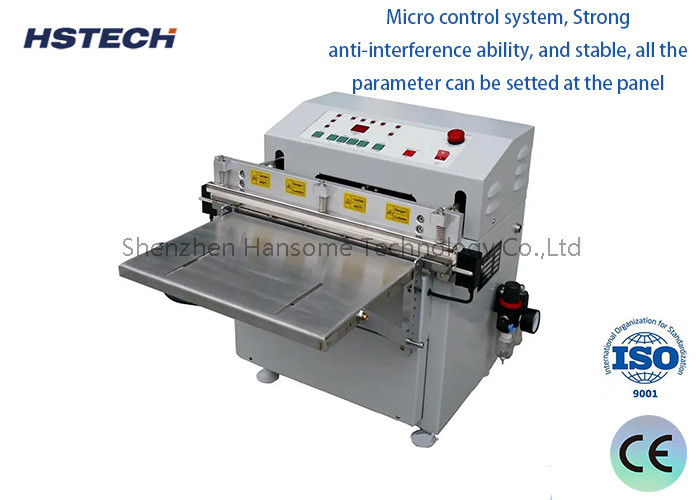

Floor Standing Vacuum Packing Machine w/ Self Detection & Adjustable Height
Introduction
This external vacuum packing machine ,also called floor standing vacuum packing machine, the whole machine is made of painted shell, also can be customized using stainless steel. The platform is adjustable to choose the right height you need, slience wheel for the machine movement.
Features
1, With air pressure supply, also we have another option,can customized the machine to use a internal air compressor, then don't need external air pressure.
2, This unit machine equipped with the self-detection system, the machine will alarm automatically when power on, power off or during the operation.
3, It's a standard vacuum packer, max sealing size is 600mm, working platform size is 400x450mm, especially suitable for packing IC, electronic components, PCB board, optoelectronic parts, hardware products, like LED lamp, PCB, FPC, taped IC, Reel packaged IC, and plastic packaged or trays packaged smart phone screen, tablet screen, touch screen, wire, connectors.
Specification
| Model | VS-600WA |
| Packing capacity | 3-10 bags/min( based on product size) |
| Sealing size | W600*W5~10mm(sealing line width, customized) |
| Max packing size | L(unlimited)*W600*H(unlimited) |
| Machine size | 670*460*1050mm |
| Platform size | 400*450mm(can customized) |
| Power supply | 110V/220V, 50/60Hz |
| Power | 1.5KW |
| Air pressure | 5-8kg(also can customized to no air pressure, make internal air compressor) |
| Ultimate vacuum | -o.1Mpa |
| Weight | 80kg |
About Packaging
COMPANY PROFILE
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer, We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of sMT/THT production line board handling equipment.We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same time,our experienced engineering team always grasps smart factory's developing directionupdates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
