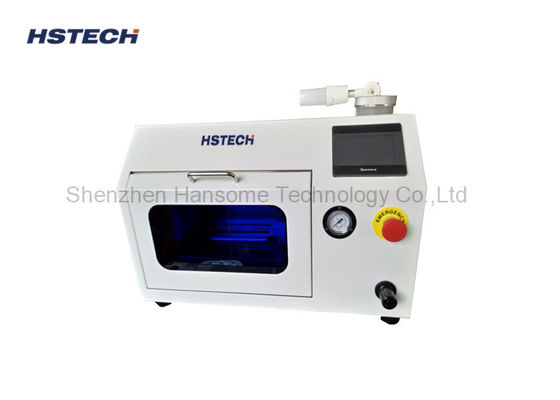

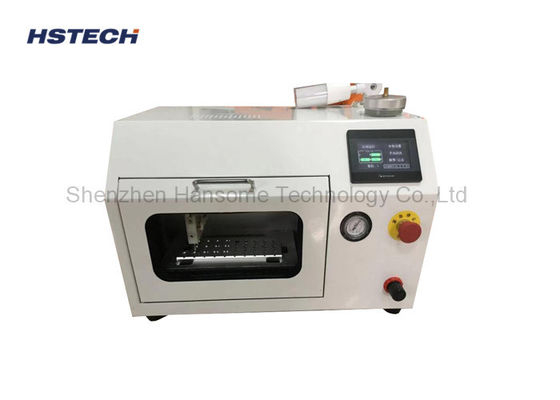

High Precision SMT Nozzle Cleaning Equipment With A D.I Water Storing Tank

High Precision SMT Nozzle Cleaning Equipment With A D.I Water Storing Tank

Introduce
The fully automatic nozzle cleaning machine is suitable for cleaning nozzles of various specifications. It adopts the latest cleaning technology and only uses pure water and air source to solve the problem of nozzle maintenance, which accounts for 32% of the SMT adsorption rate and placement rate. problem.

HS-800 nozzle cleaning machine can automatically complete the cleaning and drying process, it adopts multiple spraying nozzles spraying cleaning method, uses fluid mechanics to shred water, produces very strong water mist, forms powerful kinetic energy at the speed of sound and sprays on the nozzle, forming a continuous shape above the nozzle, clean the dirty on the surface and inside of the nozzles, it mainly used for cleaning small components, such as 0603,0402,0201,01005 and high precision nozzles.

Product Features

1, This nozzle cleaner work with pure compressor air as power, using D.I water as solvent, cleanness and not harmful.

2, The whole process including cleaning and drying, ensure the nozzles can be reuse quickly.

3, Elegant white color for the machine surface, control panel at the right side, good appearance.

4, Light display for the machine status.

5, Equip with a D.I water storing tank, with a cover at the top side, also with water level scale display.

6, Transprent cover window, can fully watching the cleaning process.

7, Safety protect, alarm function when cleaning and drying is finished. Also with emergency stop button control and electricity overload protection.

8, Touch screen panel control, easy to learn and understand.

9, One button operation, after set the cleaning time and drying time, press the start button to start, and wait till it finished.

10, Low working noise.

Specification

SMT Nozzle Cleaner Equipment principles and uses

By breaking up the water, extremely fine water mist is produced, which is sprayed onto the suction nozzle with powerful kinetic energy at supersonic speed, forming a continuous energy field above the suction nozzle to be cleaned, crushing dirt on the surface and inside. Independent cleaning, no damage to the suction nozzle. Using this device for daily nozzle maintenance and cleaning work can achieve a thorough cleaning effect in a safe state. It reduces the scrapping cost of nozzles caused by traditional cleaning methods, extends the life of nozzles, and plays a vital role in the maintenance of the placement machine to ensure that the placement machine operates in a better condition.
