| Brand Name: | YAMAHA |
| Model Number: | YS12 |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |

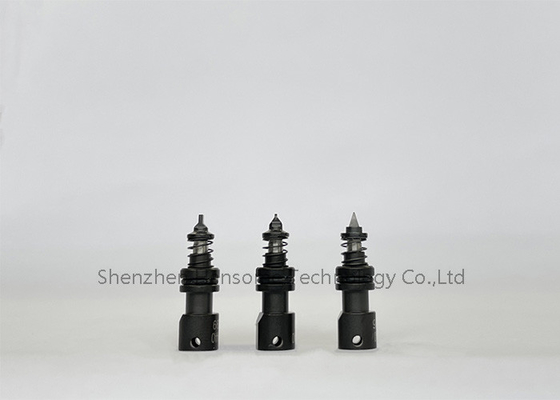

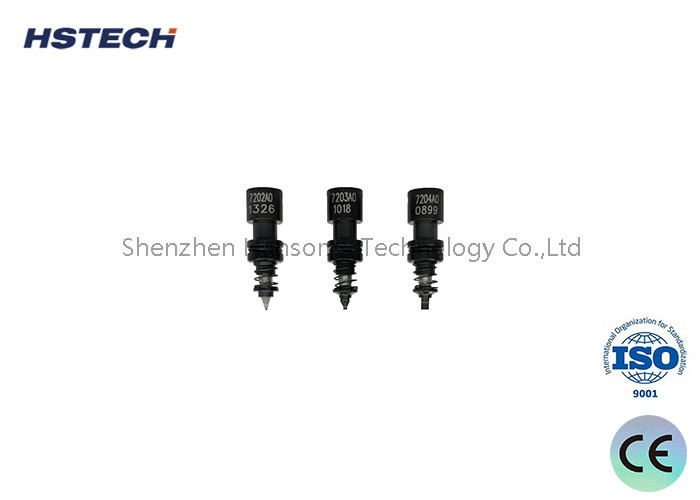

Customizable Tungsten Steel SMT Nozzle for Yamaha YSM40R Pick and Place Machine
Introduce
Placement machine for SMT (Surface Mount Technology) production line
The nozzle of the placement machine is one of the key components of the placement machine and is used to pick up and place SMT components. It uses the adsorption effect of vacuum to absorb components and places the components on the coordinate position of the circuit board by blowing air.
Material selection: According to the search results, the materials for the nozzle of the placement machine include tungsten steel, ceramics, diamond steel and glue heads. Nozzles made of different materials have different characteristics and applicable scenarios
Specifications
| Brand Name | Yamaha YSM40R type NOZZLE |
| Part Number | YSM40R |
| Warranty | 1 month |
| Usage for Machine | pick and place machine |
| Ensure | Test in machine before shippping |
| Guarantee | Original 100% and working |
| Package | Foam package+Plastic BOX+Carton Box |
| Application | SMT PCB Assembly Production Line |
| Delivery Methods | Ocean Transport, Air Transport, Air Express Services |
Features
1.The suction nozzle is a key part of the placement machine for placing components.
2.It uses the adsorption effect of vacuum to absorb the components and places the components on the coordinate position of the circuit board by blowing air.
3.The center of the nozzle and the center of the component and the spatial center of the image obtained should coincide to ensure ideal suction results.
4.When the nozzle is used as the background, it can enhance the contrast of the component image and make it more clearly visible.
YAMAHA YG12/YS12/YS 24 Series Nozzle
Yamaha YG12/YS12/YS24: KHN-M7710-A1 NOZZLE 301A ASSY
Yamaha YG12/YS12/YS24: KHN-M7710-A2 NOZZLE 301A ASSY
Yamaha YG12/YS12/YS24: KHN-M7711-01 BODY,NOZZLE
Yamaha YG12/YS12/YS24: KHN-M7711-02 BODY,NOZZLE 301
Yamaha YG12/YS12/YS24: KHN-M7711-03 BODY,NOZZLE 301
Yamaha YG12/YS12/YS24: KHN-M7713-00 SPRING
Yamaha YG12/YS12/YS24: KHN-M7713-00 SPRING
Yamaha YG12/YS12/YS24: KHN-M7714-00 PIN
Yamaha YG12/YS12/YS24: KHN-M7715-00 CLIP
Yamaha YG12/YS12/YS24: KHN-M7720-A1 NOZZLE 302A ASSY.
Yamaha YG12/YS12/YS24: KHN-M7721-01 BODY,NOZZLE 2
Yamaha YG12/YS12/YS24: KHN-M7721-02 BODY,NOZZLE 302
Yamaha YG12/YS12/YS24: KHY-M7740-A0 NOZZLE 303A/314A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7741-00 BODY,NOZZLE 303/314
Yamaha YG12/YS12/YS24: KHY-M7750-A0 NOZZLE 304A/315A ASSY.
Yamaha YG12/YS12/YS24: 90990-17J013 O-RING
Yamaha YG12/YS12/YS24: KHY-M7770-A0 NOZZLE 306A/317A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7771-00 BODY,NOZZLE 306/317
Yamaha YG12/YS12/YS24: KHY-M77A0-A0 NOZZLE 310A ASSY.
Yamaha YG12/YS12/YS24: KHY-M77A1-00 BODY,NOZZLE 310A
Yamaha YG12/YS12/YS24: KHY-M7710-A0 NOZZLE 311A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7710-A1 NOZZLE 311A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7710-A2 NOZZLE 311A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7711-00 BODY,NOZZLE 311
Yamaha YG12/YS12/YS24: KHY-M7711-01 BODY,NOZZLE 311
Yamaha YG12/YS12/YS24: KHN-M7713-10 SPRING
Yamaha YG12/YS12/YS24: KHY-M7720-A0 NOZZLE 312A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7720-A1 NOZZLE 312A ASSY.
We sell SMT Nozzles of all brand ,such as YAMAHA, Panasonic, FUJI,JUKI,SAMSUNG ,etc.
