| Brand Name: | FUJI |
| Model Number: | H04SF |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |

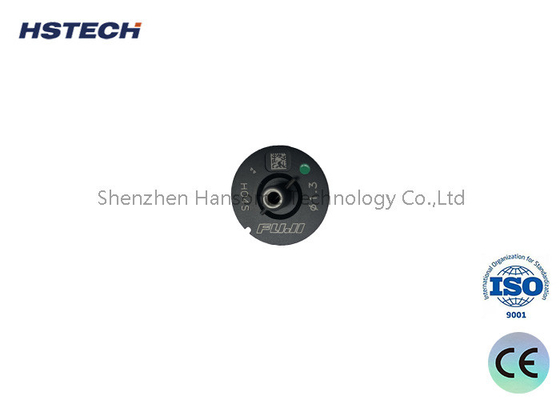

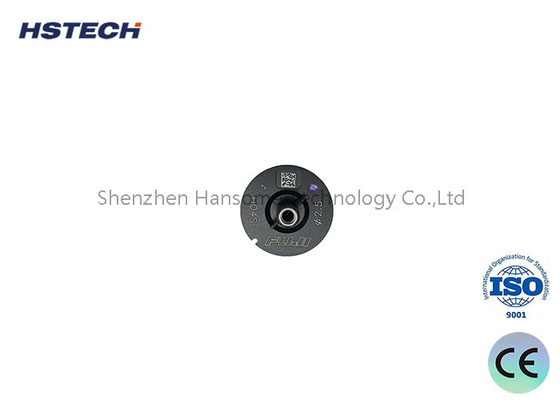

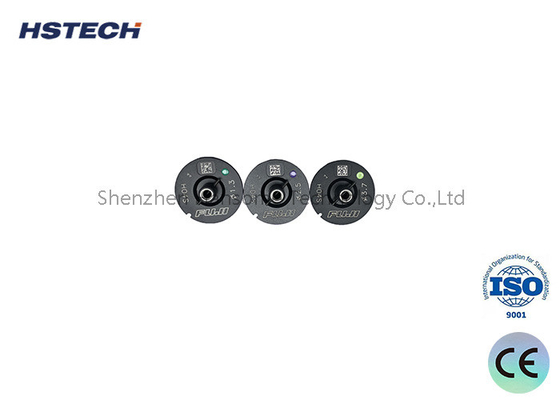

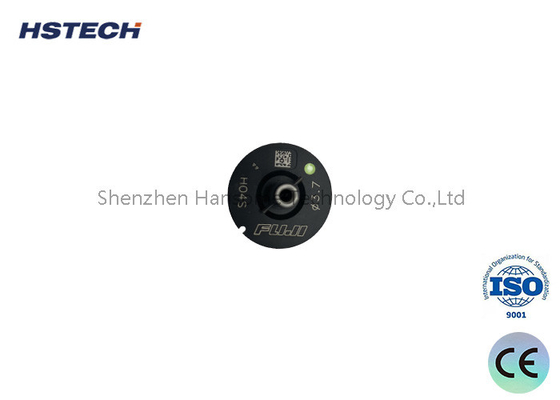

High Speed FUJI Nozzle H04S 1.3 2.5 3.7 SMT Nozzle For FUJI Pick And Place Machine
Introduction
1.Excellent material:Made of quality materials, reliable quality high cost-effective, long service life.
2.Excellent craftsmanship:The surface is smooth without flaw, the structure.
3.Strict quality control:The use of professional testing equipment, strict testing of products to ensure product standards.
Mounter nozzle material:
1, tungsten steel suction nozzle: tungsten steel suction nozzle sturdy, but easy to white, not afraid of trouble friends, Samsung suction nozzle, or SMT newcomers can choose tungsten steel suction nozzle, whitened with an oil-based pen coated, but also can continue to use.
2, ceramic nozzle: ceramic nozzle white, but very brittle, easy to break. Careful use can avoid or reduce the occurrence of breakage.
3, diamond steel nozzle: strong, good, white, but especially expensive, cost-effective.
4, rubber tip nozzle: when the surface of the material is not flat or sticky material, suitable for the use of rubber tip nozzle, but the rubber tip nozzle life is not long, it is recommended to order the rubber tip nozzle, samsung nozzle models, buy more rubber tip spare, when the tip is worn out, you can directly replace the rubber tip on their own.
Nozzle shape:
The shape of nozzle has square hole, round pass, V groove and so on. Custom-made suction nozzle, generally according to the shape of the material, choose a flat suction point, some made of elongated nozzle, into the material groove plane suction, some according to the edge of the material, made back to the word type, some of the two ends of the plane, the middle of the middle is not flat, it is necessary to build a bridge. Some materials are sticky, not good to put material, then we need to cut some slots in the nozzle wall, or made into a rubber head.
Specifications
| Brand Name |
FUJI NXT Nozzle H04S |
| Part Number | H04S-1.3 2.5 3.7 |
| Warranty | 1 month |
| Usage for Machine | pick and place machine |
| Ensure | Test in machine before shippping |
| Guarantee | Original 100% and working |
| Application | SMT PCB Assembly Production Line |
| Delivery Methods | Ocean Transport, Air Transport, Air Express Services |
All item of nozzle for FUJI Pick and Place Machine
We sell SMT Nozzles of all brand ,such as YAMAHA, Panasonic, FUJI,JUKI,SAMSUNG ,etc.
