| Brand Name: | JUKI |
| Model Number: | 506 |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |

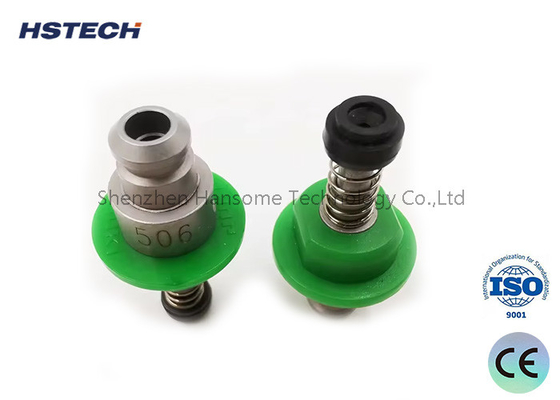

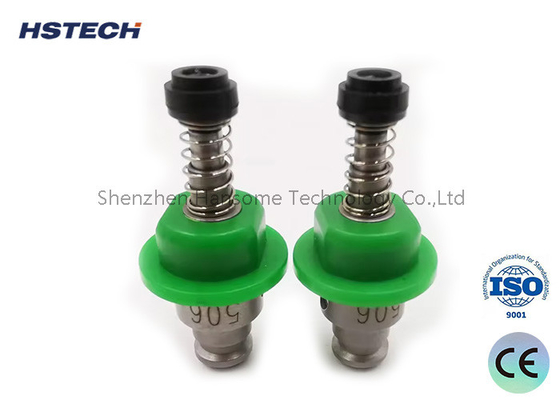

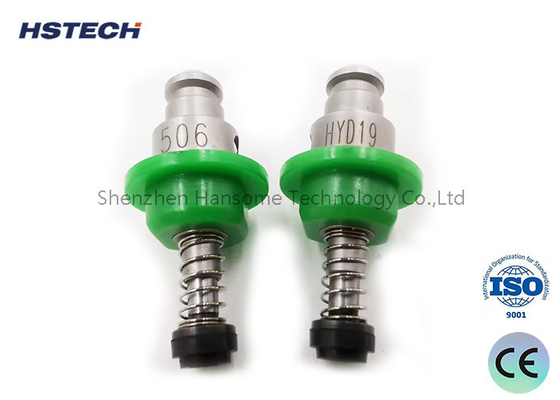

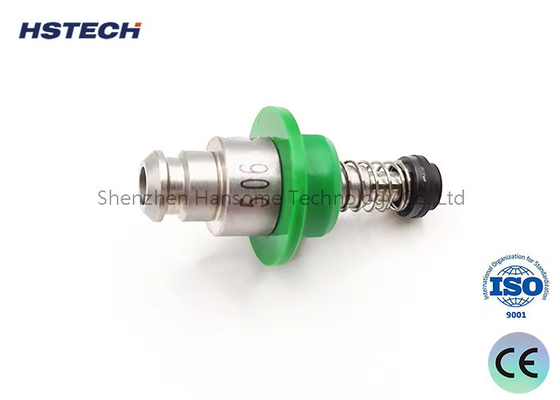

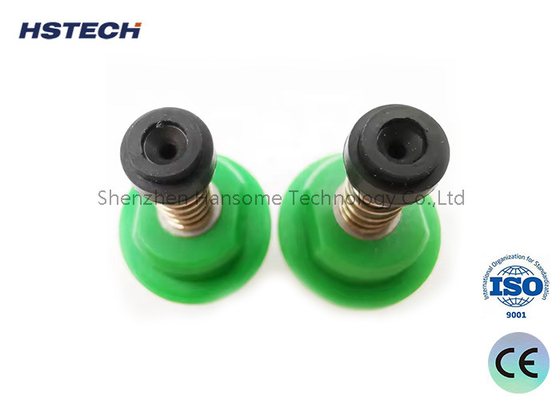

Metal 5.0 X 3.2 Metal 506 JUKI SMT Nozzle For Suction SMD Components JUKI Spare Parts
Introduction
The Fuji 506 nozzle is a specific model of nozzle manufactured by Fuji Corporation for use in the surface mount technology (SMT) process in electronic assembly equipment. The following is an introduction to the Fuji 506 nozzle:
1.Scope of application: The nozzle is suitable for picking up and placing small-sized chip components. They are usually used for electronic assembly tasks that require high precision and speed.
2.High-precision positioning: The suction nozzle has excellent positioning capabilities and can accurately pick up and place patch components at the target location on the PCB.
3.High-Speed Nozzle: The nozzle is designed for high-speed operation, providing a fast and stable pick-up and placement process. This helps increase production efficiency and reduce production line downtime.
4.Wear Resistance and Durability: Made of wear-resistant materials, it has a long service life. They are precision manufactured and quality controlled to ensure the stability and durability of the nozzles.
Specification
| Brand | JUKI |
| Parts number | E36017290A0 |
| Chip mounter | 20000series |
| Nozzle size | 31x16mm / 1.22x0.63 inch(Height x Diameter) |
| Nozzle color | Sliver and green |
| Material | Ceramic+Tungsten steel+Rubber |
| Weight | 8g |
| Package | Customized Blister |
| Showroom Location | Egypt, Canada |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Place of Origin | Japan |
| Brand Name | JUKI |
| Condition | New |
| Type | Nozzle |
| Product Name | SMT JUKI NOZZLE |
| Model Number | JUKI 506 NOZZLE |
| Quality | Top |
| Package | Foam package+Plastic BOX+Carton Box |
| Condition | Original |
| Type | SMT JUKI NOZZLE |
| Brand | JUKI |
| Delivery | dhl,fedex,etc... |
| stock | large |
| warranty | 3 month |
Features
1, Using high quality materials, ceramic, tungsten steel and rubber, better mounting performance and long lifespan.
2, The nozzles are well packed by the customized blister, won't be broken during the shipment.
3, Standard size without any error, high precision.
4, Green and slive color designed, good appearance and environment protected.
5, Suitable for Component suction and placement, like cathode capacitance, diode, SOT, QFN, BGA and so on.
Product Details
JUKI Nozzle Series
E36087290A0 JUKI NOZZLE 500 ASSY.1.0×0.5
E36007290A0 JUKI NOZZLE 501 ASSEMBLY 0.7×0.4
E36017290A0 JUKI NOZZLE 502 ASSEMBLY O 0.7/O 0.4
E36027290A0 JUKI NOZZLE 503 ASSEMBLY O 1.0/O 0.6
E36037290A0 JUKI NOZZLE 504 ASSEMBLY O 1.6/O 1.0
E36047290A0 JUKI NOZZLE 505 ASSEMBLY O 3.5/O 1.7
E36057290A0 JUKI NOZZLE 506 ASSEMBLY O 5.0/O 3.2
E36067290A0 JUKI NOZZLE 507 ASSEMBLY O 8.5/O 5.0
E36077290A0 JUKI NOZZLE 508 ASSEMBLY O 9.5/O 8.0
E36177290A0 JUKI NOZZLE 512
E36187290A0 JUKI NOZZLE 513
E36197290A0 JUKI NOZZLE 514
E36207290A0 JUKI NOZZLE 515
E36217290A0 JUKI NOZZLE 516
E36227290A0 JUKI NOZZLE 517
E36227290A0 JUKI NOZZLE 518
E36227290A0 JUKI NOZZLE 519
E36227290A0 JUKI NOZZLE 520
E36227290A0 JUKI NOZZLE 521
E36227290A0 JUKI NOZZLE 522
E36227290A0 JUKI NOZZLE 523
E36227290A0 JUKI NOZZLE 524
E36227290A0 JUKI NOZZLE 525
E36227290A0 JUKI NOZZLE 526
E36227290A0 JUKI NOZZLE 527
E36227290A0 JUKI NOZZLE 528
E36227290A0 JUKI NOZZLE 529
E36227290A0 JUKI NOZZLE 530
E36227290A0 JUKI NOZZLE 531
E36227290A0 JUKI NOZZLE 532
E36227290A0 JUKI NOZZLE 533
E36227290A0 JUKI NOZZLE 534
E36227290A0 JUKI NOZZLE 535
E36237290A0 JUKI NOZZLE 800
E36247290A0 JUKI NOZZLE 801
E36257290A0 JUKI NOZZLE 802
E36267290A0 JUKI NOZZLE 803
EG350729M01 JUKI NOZZLE 804
