| Brand Name: | HSTECH |
| Model Number: | 500016 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |
Titanium Finger JT Wave Soldering Finger Essential Tool For Stable Welding In SMT Production Line
Introduce
Finger for wave soldering can ensure stable welding of the workpiece. During the wave soldering process, the welding workpiece needs to be fixed in the welding position to ensure welding quality. The Finger keeps the workpiece in the correct position by clamping it to avoid displacement or shaking during the welding process. This ensures the precise position of the welding point and improves welding quality and stability.
Wave Soldering Finger is a key component used in wave soldering equipment. Its function is to transport the PCB board along the soldering wave peak to ensure stability and accuracy during the soldering process.
Features
1. Protect the surface of the welding workpiece. It can isolate the welding heat source and the workpiece surface to a certain extent, reducing thermal damage to the workpiece surface.
2. Improve the efficiency of the welding process. It can simplify the fixing and disassembly process of workpieces, quickly clamp and loosen workpieces through the Finger , reduce production time and labor costs, and improve production efficiency.
3. Provide additional welding support. The Finger can provide additional support by adjusting the clamping strength and angle to keep the welding workpiece in the required position and shape.
| Reliable transmission of wave soldering | The finger is made of high-quality materials and has excellent transmission performance. It can transport PCB boards stably and ensure the continuity of the welding process |
| Precise positioning | The precisely designed finger can accurately position and maintain the position of the PCB board during the soldering process, ensuring the correct alignment between the soldering point and the soldering wave peak |
| High temperature resistance | The finger has been specially treated to have good high temperature resistance, can operate stably in high temperature environments, and is not easily deformed or damaged |
| Wear resistance | The surface of the finger has been specially treated or made of wear-resistant materials, which can resist the friction and wear generated during the welding process and extend the service life |
| Easy to install and maintain | The finger design is simple and easy to install and maintain, which can reduce equipment maintenance costs and downtime |
| Wide applicability | Suitable for various types of wave soldering equipment and processes, and can be used to solder PCB boards of different types and sizes. Made of high-quality materials, it has excellent transfer performance and can stably transfer PCB boards to ensure the continuity of the welding process |
| Precise positioning | The finger can accurately position and maintain the position of the PCB board during the welding process, ensuring the correct alignment between the welding points and the welding wave peaks |
| High temperature resistance | The finger has been specially treated to have good high temperature resistance, can operate stably in high temperature environments, and is not easily deformed or damaged |
| Wear resistance | The surface of the finger has been specially treated or made of wear-resistant materials, which can resist the friction and wear generated during the welding process and extend the service life |
| Easy to install and maintain | The finger design is simple and easy to install and maintain, which can reduce equipment maintenance costs and downtime |
Cleaning process
| Cleaning objects | Wave soldering finger |
| Application materials | WBD |
| Process description | Cleaning is with water-based cleaning agent. |
| Ultrasonic cleaning time | 3--5 minutes (the time can be adjusted according to the amount of residue); |
| Rinsing | Use clean water, rinse time: 1-2 minutes; |
| Choose | natural drying, bellows drying, oven drying, etc |
| Operation | Only one employee is required to operate, and the fully automatic cleaning line reduces the operating intensity of workers. |
Size
Product display

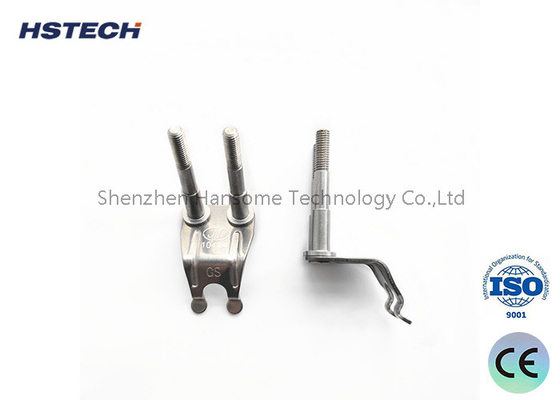

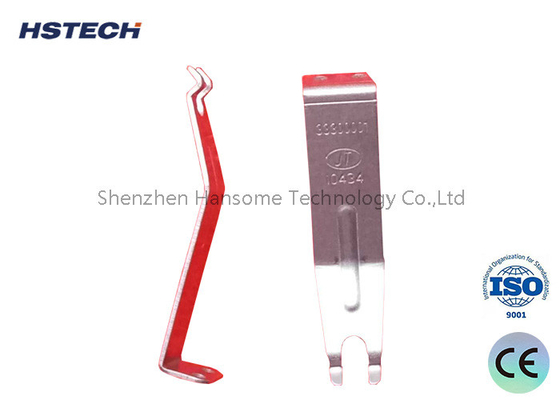

Product physical image
