| Brand Name: | JUKI |
| Model Number: | JUKI 501 KE2000 series |
| MOQ: | 5pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |
JUKI 701 Nozzle for Component Suction and Placement, Tungsten Steel Ceramic
Introduction
This 501 nozzle is the original new nozzles(also available for copy new) for replacing the old nozzles in the chip mounter, it's a high precision
nozzle which can suction the nozzles accurate, it made of high quality tungsten steel ensure the longlife span.
Specifications
| Brand | JUKI |
| Parts number | E36017290A0 |
| Nozzle type | 502 |
| Chip mounter | 20000series |
| Nozzle size | 31x16mm / 1.22x0.63 inch(Height x Diameter) |
| Nozzle color | Sliver and green |
| Material | Ceramic+Tungsten steel+Rubber |
| Weight | 8g |
| Package | Customized Blister |
Features
1. Using high-quality materials such as ceramics, tungsten steel, and rubber, the installation performance is better and the service life is longer.
2. The nozzle is packaged in a customized bubble wrap and will not be damaged during transportation.
3. The standard size has no errors and high accuracy.
4. The color design of green lines is beautiful and environmentally friendly.
5. Suitable for the suction and discharge of components such as cathode capacitors, diodes, SOT, QFN, BGA, etc.

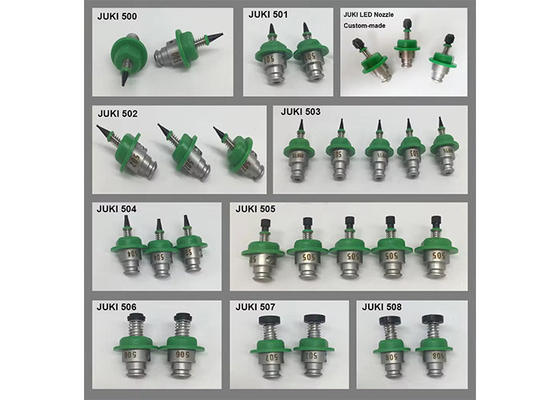

JUKI 2000 Series nozzle models
E36087290A0 JUKI NOZZLE 500 ASSY.1.0×0.5
E36007290A0 JUKI NOZZLE 501 ASSEMBLY 0.7×0.4
E36017290A0 JUKI NOZZLE 502 ASSEMBLY O 0.7/O 0.4
E36027290A0 JUKI NOZZLE 503 ASSEMBLY O 1.0/O 0.6
E36037290A0 JUKI NOZZLE 504 ASSEMBLY O 1.6/O 1.0
E36047290A0 JUKI NOZZLE 505 ASSEMBLY O 3.5/O 1.7
E36057290A0 JUKI NOZZLE 506 ASSEMBLY O 5.0/O 3.2
E36067290A0 JUKI NOZZLE 507 ASSEMBLY O 8.5/O 5.0
E36077290A0 JUKI NOZZLE 508 ASSEMBLY O 9.5/O 8.0
