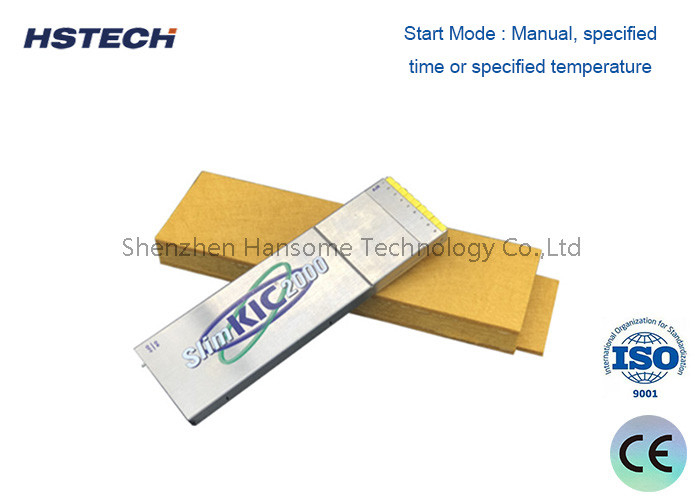

High-Resolution Thermal Profiler for Precise Temperature Monitoring and Analysis
| Main Technical Specifications |
|
1,Thermocouple: K-type thermocouple 2,Sampling interval:0.05sec---600sec Set with software 3,Record data:80000 point/channel, Can record 20 sets profile 4,Resolution: 0.1℃ 5,Temperature measuring range: 0—1000℃ 6,Temperature measuring accuracy: ±1.0℃ 7,Total power: ≤120mW 8,Operating voltage:3.6VDC, rechargeable battery 9,Dimensions: 195(L)×82(W)×21(H)mm 195(L)×103(W)×21(H)mm 10, Insulation box:245(L)×100(W)×30(H)mm 10,Start Mode : Manual, specified time or specified temperature 11,Record mode: Monitor/Record 12,Connection mode:USB/RF 13,Software version:Profilermanager 2.0 |
Product Library Manager
Machine Library Manager
Solder Library Manager
Recipe Library Manager
Data analysis
PWI
Peak Temp,Times of overtop the Temp
Times of between Temp(Reflow)
Slope of between Temp(Reflow)
Slope of between Times(Wave)
