| Brand Name: | HSTECH |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

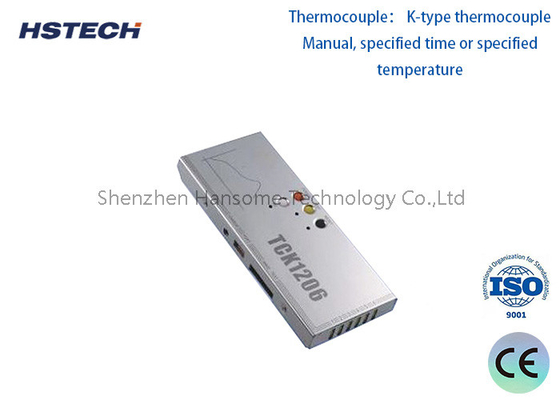

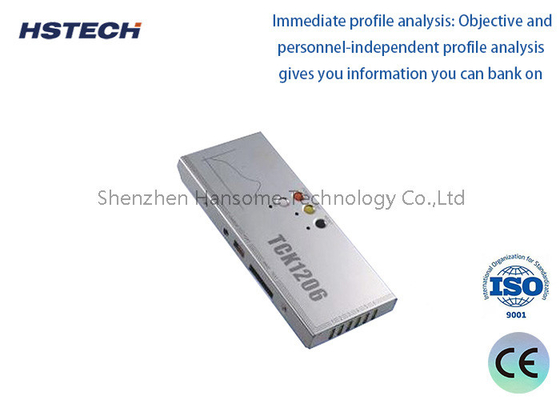

80000 Data Point/Channel Thermal Profiler with RF Transceiver and Hi-Temp Adhesive Tape
|
1. Thermal profiler 2. Insulation box 3. Temperature test line 4. Data download line 5. Charger 6. Hi-temp adhesive tape 7. Software CD 8. “+” screwdriver 9. Tweezers 10. Insulated gloves 11. Solder wire 12. Scissors 13. Instrument box 14. User Manual 15. Acceptance Certificate 16. RF Transceiver (Choose Composition) 17. Wave Test System (Choose Composition) |
Main Technical Specifications
1,Thermocouple: K-type thermocouple
2,Sampling interval:0.05sec---600sec Set with software
3,Record data:80000 point/channel, Can record 20 sets profile
4,Resolution: 0.1℃
5,Temperature measuring range: 0—1000℃
6,Temperature measuring accuracy: ±1.0℃
7,Total power: ≤120mW
8,Operating voltage:3.6VDC, rechargeable battery
9,Dimensions: 195(L)×82(W)×21(H)mm 195(L)×103(W)×21(H)mm
10, Insulation box:245(L)×100(W)×30(H)mm
10,Start Mode : Manual, specified time or specified temperature
11,Record mode: Monitor/Record
12,Connection mode:USB/RF
13,Software version:Profilermanager 2.0
Product Library Manager
Machine Library Manager
Solder Library Manager
Recipe Library Manager
Data analysis
PWI
Peak Temp,Times of overtop the Temp
Times of between Temp(Reflow)
Slope of between Temp(Reflow)
Slope of between Times(Wave)
About Packaging
