| Brand Name: | HSTECH |
| Model Number: | HS-F306 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

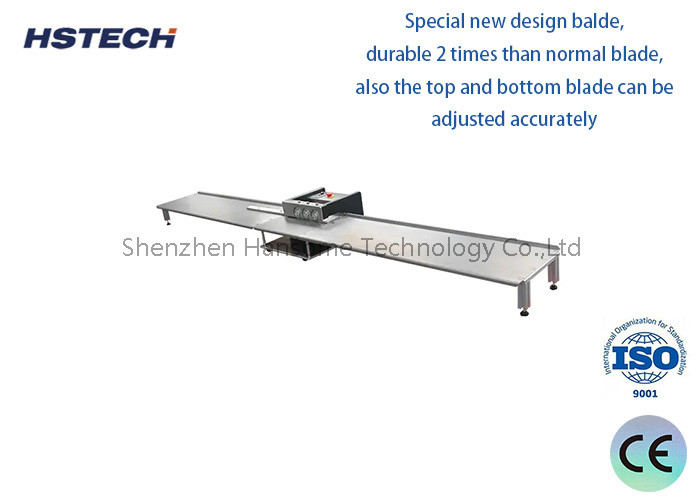

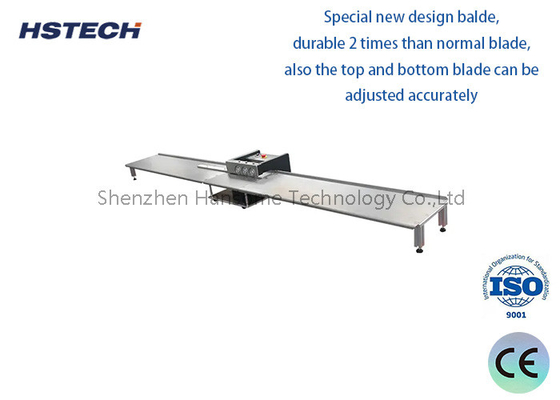

Long Platform 4 Groups Blade LED Hard Strip PCB Depaneling Equipment
This machine use 3 groups blade cutting, each groups 4 blade, top 2 balde and bottom 2 blade,ultra low cutting force strss, protect the board without deformation, it suitable for hardness aluminum and copper boards.
Specification
| Model | HS-F300 | |||||||
| Production name | 3 groups high speed strip separating machine | |||||||
| Machine dimension | 390mm×3250mm×330mm | |||||||
| Platform dimension | 1200mm(or 2400mm)×518mm×520mm | |||||||
| Blade dimension | Circular blade ϕ60mm×12mm×3mm | |||||||
| Separating thickness | 0.8~3mm, 1/3 of the board thickness | |||||||
| Voltage | AC220V/110V, 50/60Hz | |||||||
| Air supply | No | |||||||
| Machine power | 60W | |||||||
| Separating speed | 1mm-2000mm/s | |||||||
| Separating length | 100mm-unlimited | |||||||
| Separating width | 4-100mm best, single board width,not whole pin board width | |||||||
| Suitable boards | LED strip board,aluminum and fiber glass boards | |||||||
| Weight | Around 34kg | |||||||
