| Brand Name: | HSTECH |
| Model Number: | HS-500LC |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 200 sets per month |

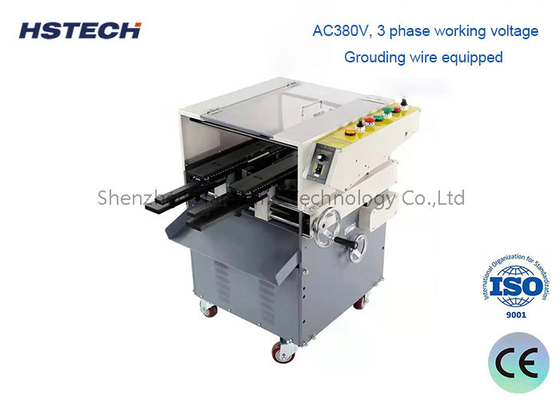

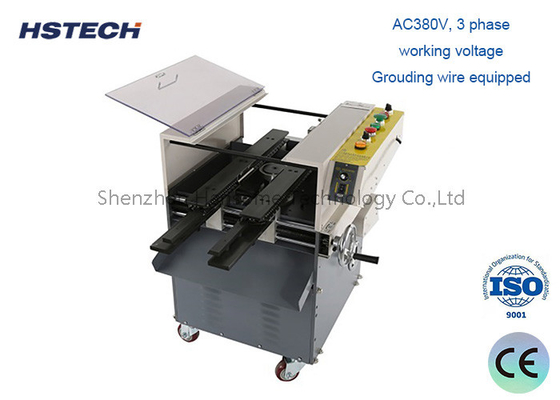

Compact and Lightweight SMT Machine Parts with 900*670*800mm Dimensions and 115KG Weight
Feature
1, Automatic input and output the PCB, cutting the PCB lead after the welding.
2, High stability, it can connect with the automatic soldering machine or AI machine.
3, Applies to the finger type slid to fasten the PCB board.
4, Finger slid change easy and economic.
5, With the prevent bending device, to overcome the bending PCB in welding.
6, Input speed can be adjusted, max. speed is 3m/min.
Specification
| Model | HS-500LC |
| Power | AC220, 50/60Hz/380V,50/60Hz |
| Max. PCB size | 500mm(L) x 300mm(W) |
| Main axis speed | 4500/Min |
| Main axis motor | 3/4 Hp |
| Guide rail speed | 0-3 M can be adjustable |
| Min. lead height | 1.0-1.5mm Min |
| Machine Demension | 900*670*800mm(W*D*H) |
| Net Weight | 115KG |
