| Brand Name: | HSTECH |
| Model Number: | HS-800 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
Data Sheet Nozzle Cleaning Machine HS-800.pdf
Cleaning Principle
High-pressure jet technology: A, fine water mist particles, continuous pressure to reduce water, resulting in 3-10um particles of water mist to clean the dirt into the inner wall of the small nozzle aperture.
Pulsed power: B, Sound velocity (V=360m/s) forms a powerful pulsed power injection onto the nozzle, which can reach 30 pulse frequency per second, forming a continuous impact force above the nozzle to be cleaned. Smash the surface and internal dirt for cleaning purposes.
Specification
| Model | HS-800 |
| Voltage | Single phase, AC110-220V, 50H60Hz |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | PLC+Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |

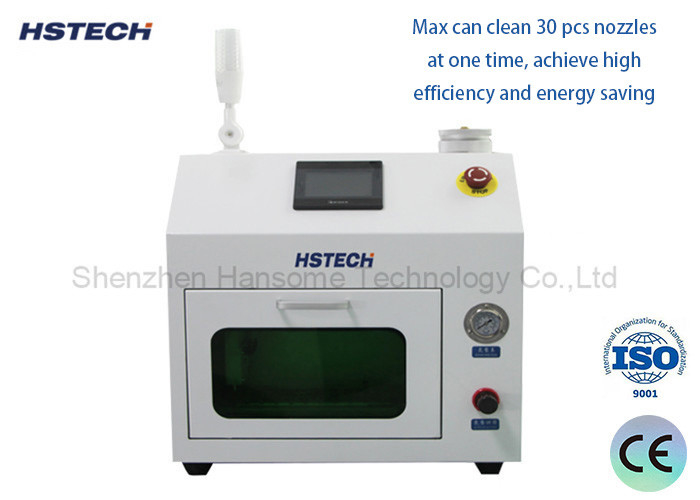

| Nozzle tray | Default 30 nozzles |
| Nozzle size | 01005, 0201-2512inch |
| Noise | 35-60dB |
Product Features

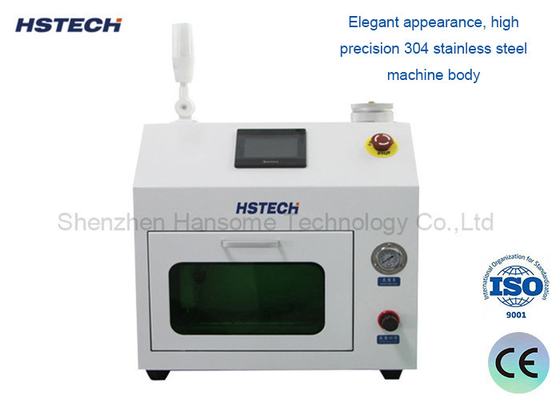

1, Elegant appearance, high precision 304 stainless steel machine body.
Machine size
Nozzle Tray
