Data Sheet Nozzle Cleaning Machine HS-800.pdf
Fast and Efficient Nozzle Cleaning - Multiple Spraying Nozzles Method
Introduction

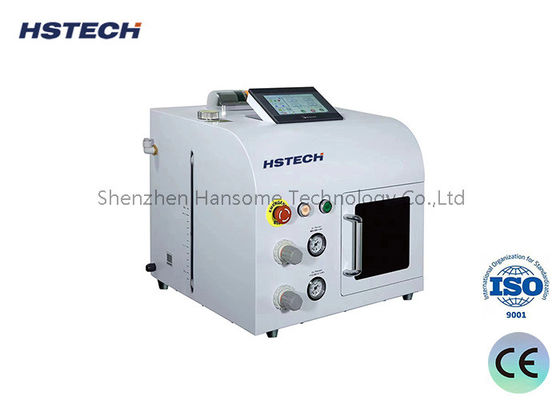

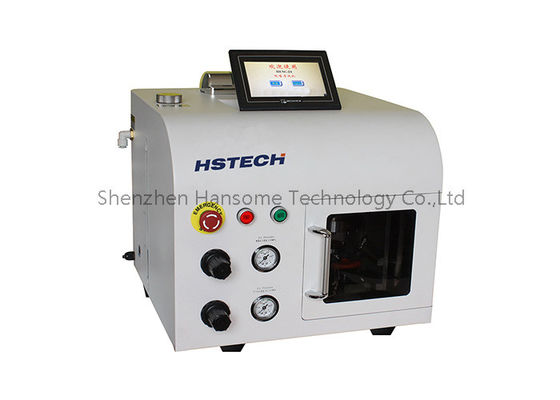

HS-800 nozzle cleaning machine can automatically complete the cleaning and drying process, it adopts multiple spraying nozzles spraying cleaning method, uses fluid mechanics to shred water, produces very strong water mist, forms powerful kinetic energy at the speed of sound and sprays on the nozzle, forming a continuous shape above the nozzle, clean the dirty on the surface and inside of the nozzles, it mainly used for cleaning small components, such as 0603,0402,0201,01005 and high precision nozzles.
Cleaning Principle
High-pressure jet technology: A, fine water mist particles, continuous pressure to reduce water, resulting in 3-10um particles of water mist to clean the dirt into the inner wall of the small nozzle aperture.
Pulsed power: B, Sound velocity (V=360m/s) forms a powerful pulsed power injection onto the nozzle, which can reach 30 pulse frequency per second, forming a continuous impact force above the nozzle to be cleaned. Smash the surface and internal dirt for cleaning purposes.
Specification
| Model | HS-800 |
| Voltage | Single phase, AC110-220V, 50H60Hz |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | PLC+Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 01005, 0201-2512inch |
| Noise | 35-60dB |
Product Features
1, Elegant appearance, high precision 304 stainless steel machine body.
Machine size
Nozzle Tray
