| Brand Name: | HSTECH |
| Model Number: | HS-800 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
Data Sheet Nozzle Cleaning Machine HS-800.pdf
SMT Nozzle Cleaning Equipment HS-800 with PLC Touch Screen and Green Cover
Cleaning Principle
High pressure spraying technology: A. Fine water mist particles are continuously reduced in pressure to clean the water mist of 3-10um particles and enter the inner wall of the small nozzle hole.
Pulse power: B, sound speed (V=360m/s) forms a powerful pulse power jet on the nozzle, which can reach a frequency of 30 pulses per second, forming a continuous impact force above the nozzle to be cleaned. Crush surface and internal dirt for cleaning.
Specification
| Model | HS-800 |
| Voltage | Single phase, AC110-220V, 50H60Hz |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | PLC+Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 01005, 0201-2512inch |
| Noise | 35-60dB |
Product Features

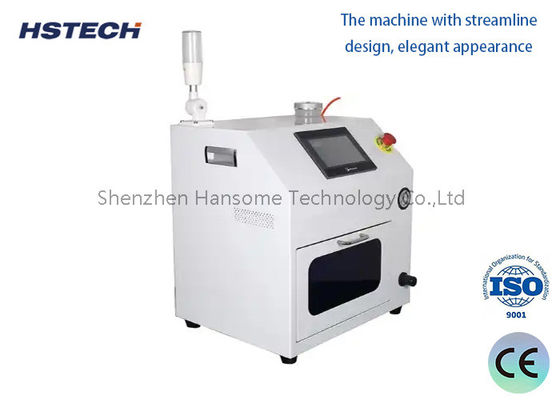

1. Elegant appearance, high-precision 304 stainless steel body.
2. Max can clean 30 nozzles at once, achieving high efficiency and energy saving.
3. Suitable for cleaning various nozzles, it also has good cleaning performance for cross shaped, I-shaped, and irregular nozzles.
4. The atomized water flow is equipped with ultrasonic spray cleaning to thoroughly remove dirt and impurities that cannot be removed by ultrasonic waves, ensuring cleanliness even for small nozzle holes.
5. Easy to operate and available in English.
6. Observation window, allowing observation of the entire cleaning process.

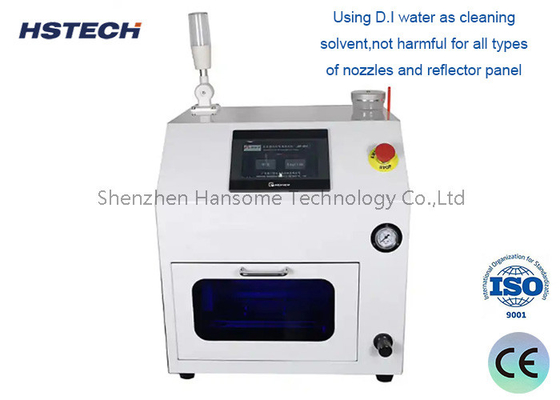

7. Using deionized water as a cleaning solvent is harmless to all types of nozzles and reflective panels.
8. Touchscreen+PLC distributed control, stable and reliable performance.
Machine size
Nozzle Tray
