| Brand Name: | HSTECH |
| Model Number: | HS-320 |
| MOQ: | 1 sets |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 200 sets per month |

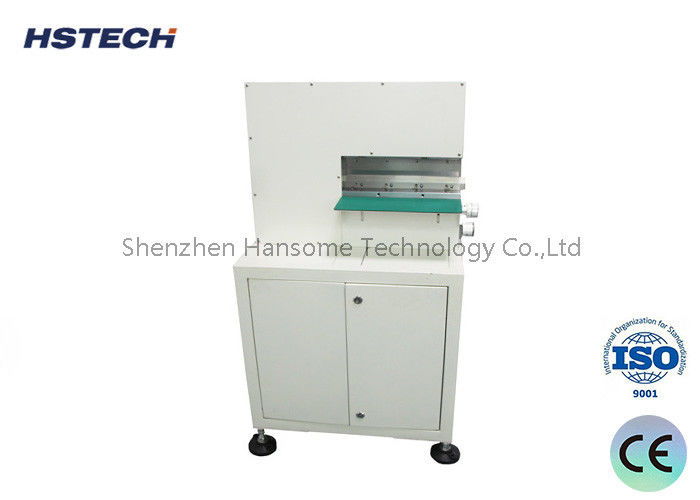

Pneumatic Driven Blade Metal Low Cutting Force Stress V Cut PCB Depanelizer
Application
This machine is a ultra low cutting force stress Pneumatic PCB separator, widely used to all PCBA boards.(with V-groove or without)
Features
1. Double line blade cutting, suitable for SMD thin plates, aluminum plates, and various thicknesses of plates, with a cutting range of less than 2mm and no safety issues.
2. Reduce the internal stress to below 500uE to protect the components from damage.
3. No friction cutting, no blade metal residue.
4. Pneumatic drive, no cutting stress.
5. The upper and lower blades can be adjusted, and the gap can be adjusted according to the thickness of the PCB using a knob to match the thickness of the V-shaped groove.
Specification
| Model | HS-320 |
| Efficient cutting length | 350mm(larger size need customized) |
| Machine size | 650*500*1130mm |
| Air pressure | 0.5~0.7Mpa |
| Upper components height | 39mm(max) |
| Down components height | 19mm(max) |
| Pcb thickness range | 0.1-2.0mm(with V-groove),0.1-1.0mm(without V-groove) |
| Air consumption | 200-400(L/min) |
| Weight | 200kg |

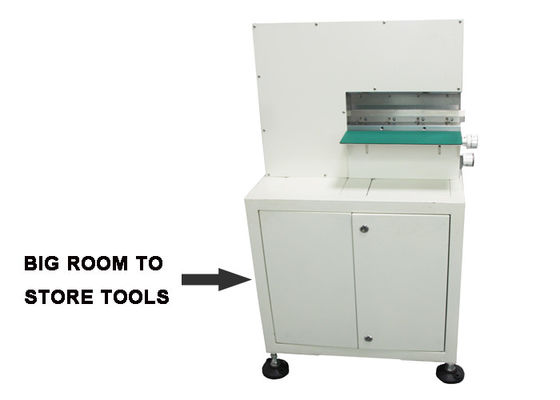

Special design with big room can store many tools
Counter and big size Air Cyliner
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.
We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
