Customizable 4 Axis Screw Fastening Machine with Double Working Station

Brand Name:	HSTECH
Model Number:	HS-SL5331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

4Axis Automatic Screw Locking Machine

Feeding:

Suction Feeding

Axis:

4axis

Screws Compatible:

M1-M6, Or Customized

Moving Range:

500*300*300*100mm

Port:

Shenzhen

Oem:

Yes

Warranty:

1 Year

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

Smart 4 Axis Automatic Screw Locking Mach. w/ Feeder, M1-M6

Introduction

The screw machine is a automtic equipment, with 4 axis moving system, double working station, single feeder, the whole machine composed of a feeding system and a lock-locking system, the feeding part responsible for screw-arrangement machine, is a relatively simple type of screw arranged in a row for the purpose of improving work efficiency. This screw lock machine is a automation equipment, widely used in the electronics industry. Compatible for screws from M1 to M6, other special screws, also can be customization.

Features

1, Suction feeding, single screw feeder, also can customized to double feeder.
2, Using high quality electric screwdriver for Z axis moving.
3, 4 Axis operation, moving range 500*300*300*100mm.
4, Double working station, the operator can loading the product one by one, great improve the production efficiency and reduce labor cost.

5, Accurate torsion, convenient adjustment, guaranteed the production quality.

6, Easy adaptability for M1-M6, just by changing screw guider(Customization available).

7, With the function of leak detection, if a screw did not fill in place it can fill continually or alarm.

8, The machine can store hundreds of processing files, each file can support 1000 screw bits, you can call it out when you use it.

Specification

Model	HS-SL5331
Production name	4Axis Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	500300300*100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension	746585800mm
Machine weight	65kg

Main parts brand

1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell

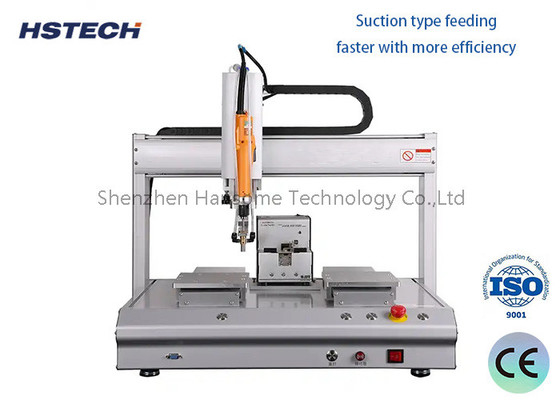

Customizable 4 Axis Screw Fastening Machine with Double Working Station 0

Customizable 4 Axis Screw Fastening Machine with Double Working Station 1
